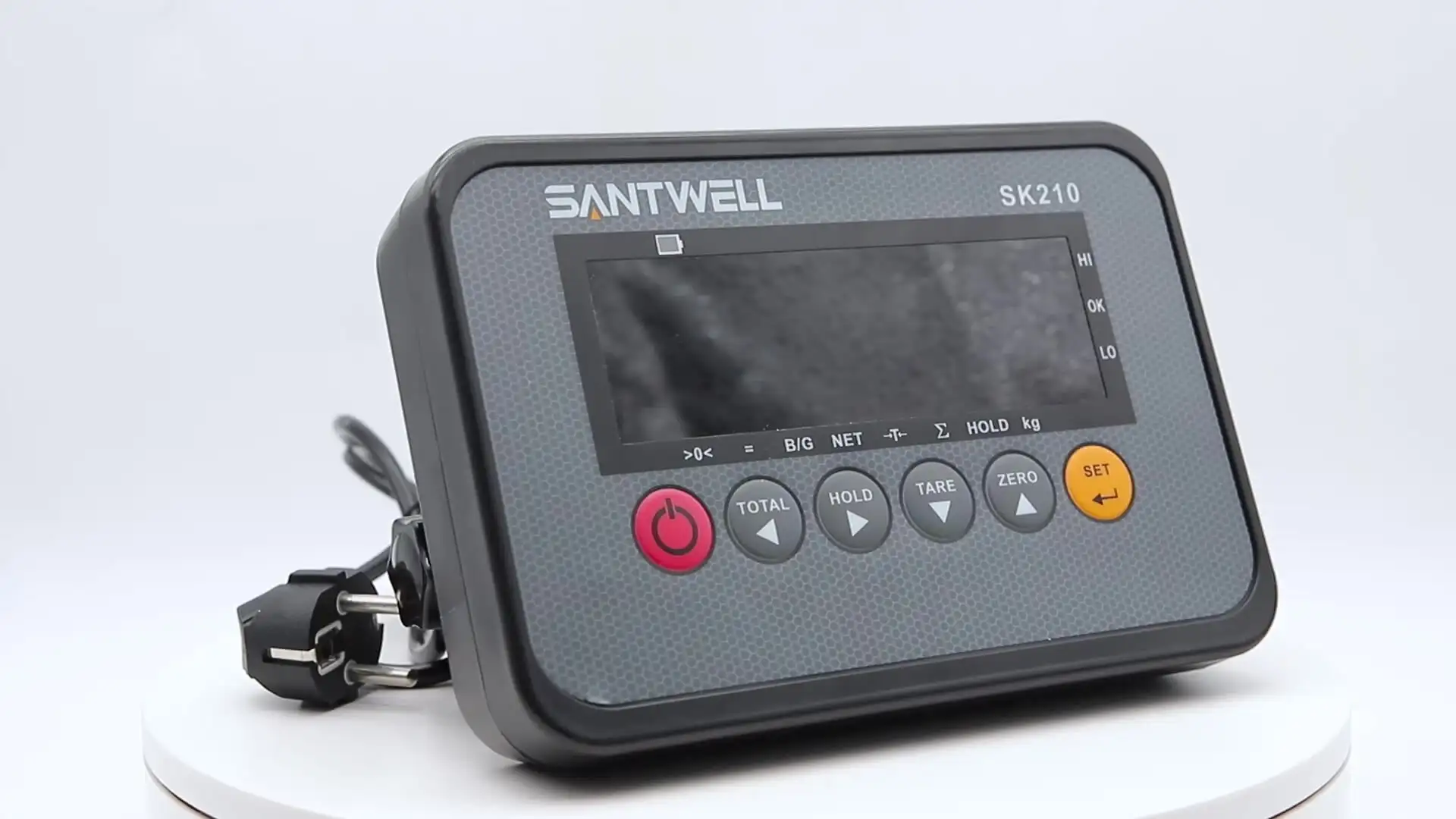

The use of technology has always been seen as quite necessary to the manufacturing process of the SK210 Plastic Housing LED Display Compact Weighing Indicator With RS232 Interface Animal Weighing Indicator.With those versatile and practical features, it has wide applications in the field(s) of Instrument Parts & Accessories and have an enormous impact on them.
Color : LCD LED Red LED Green
shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 200 Pieces),Customized packaging (Min. Order: 1000 Pieces),Graphic customization (Min. Order: 1000 Pieces)
Technical Parameter
|
Display
|
6-digit LED Display
|
|
|
Accuracy class
|
OIML III Same Level
|
|
|
AD convert
|
24bit
|
|
|
Input voltage
|
-7mV ~ 12.8mV
|
|
|
Resolving
|
display15000, internal code 1000000
|
|
|
Minimum resolution
|
1μV/e
|
|
|
Excitation voltage
|
DC3.3V
|
|
|
Load cell interface
|
4-wire, 1~4 350Ω analog load cell(s)
|
|
|
Power supply
|
AC110/220V 50/60Hz or built-in 4V/4Ah lead acid battery
|
|
|
Work environment
|
-10ºC ~ +40ºC, ≤85%RH
|
|
|
Battery enduring life
|
50 hours (with 4pcs 350Ω load cells)
|
|
|
Functions
|
accumulate, hold, animal weighing, check, sort
|
|
|
Interface
|
RS232
|
|
