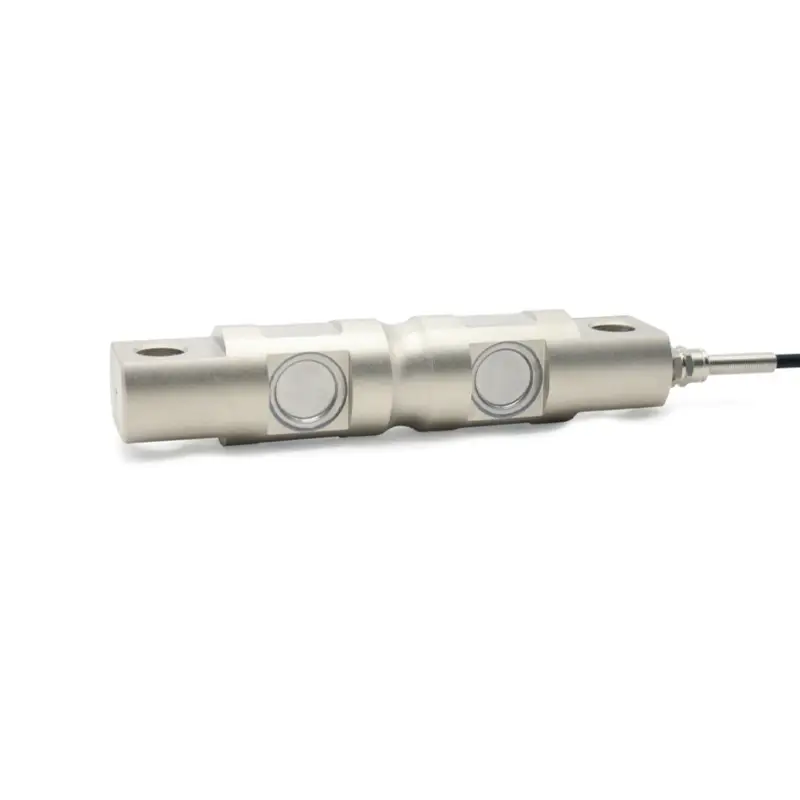

Santwell / QS-S / 창고용 계량 더블 엔디드 시어 빔 로드셀 센서


In the fierce market competition, Ningbo Santwell Import & Export Co., Ltd has grown continuously. We invest in R&D to find better solutions in the Force Sensors & Load Cells industry. We offer buyer Warehouse Measurement 75 Klb 24 V 2Cr14Ni Double Ended shear beam load cell QS-V that they need at prices that fit their pocket. Relying on our excellent products and sensible marketing strategy,Ningbo Santwell Import & Export Co., Ltd hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.

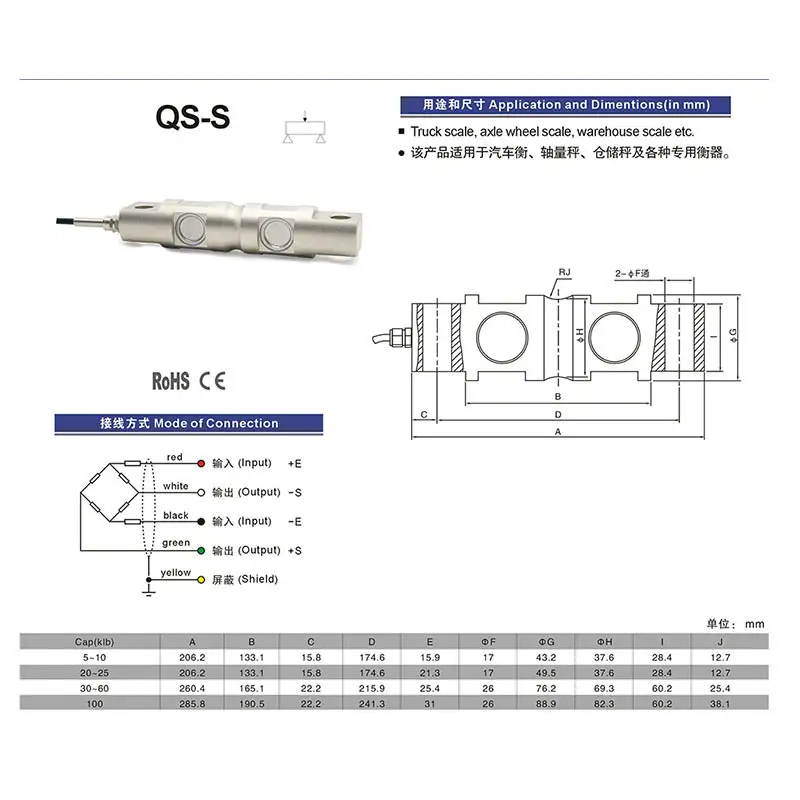

Model Number: QS-S Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: SantWell
Usage: Truck scale, railway scale, blending scale Theory: resistan
Output: Resistance strain Description: double ended shear beam
Rated Load: 10t 20t 30t 40t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Utimate Overload: 200%F.S














Share it:

QS-S With experienced engineers and technicians, we have strong ability to optimize and upgrade technologies. Based on its versatile features, it proves to be very useful in the field(s) of Force Sensors & Load Cells.

Specification :  10T, 20T, 30T, 40T

shipping: Support Sea freight · Land freight<

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)
