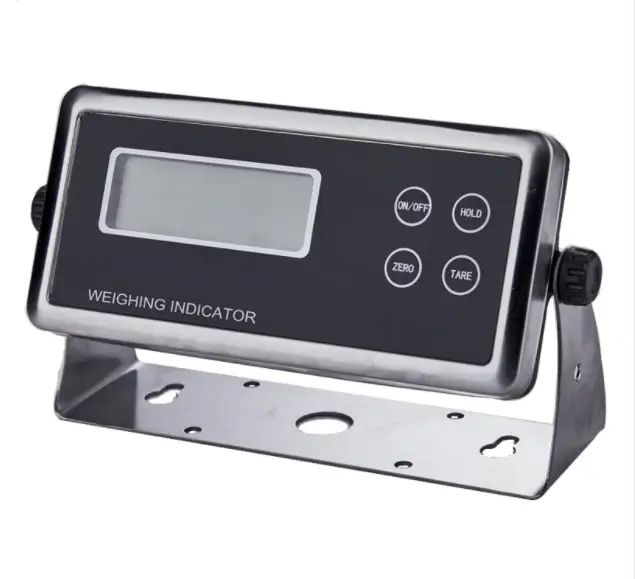

After years of in-depth research,we has successfully developed a brand-new SK210C Custom digit Display Plastic Waterproof Housing Electronic Weighing Indicator.Currently, this technology is the industry leader.
Rated : Load >300kg
Accuracy : 30000D
Type : weighing indicator
Shipping: Support Sea freight · Land freight
Technical Parameter
| Display |
6-digit 20mm LCD with backlight
|
| Accuracy class | OIML III |
|
AD convert
|
∑-Δ, 24bit |
| Input voltage |
-3mV ~ 12mV
|
| Resolution |
display15000, internal code 1000000
|
| Minimum resolution | 1μV/e |
| Excitation voltage |
DC3.3V
|
| Load cell interface |
4-wire(optional:6-wire)
|
| Drive capability |
1-4 350Ω analog load cell(s)
|
| Power supply |
3 AA-size batteries,or DC6V
|
| Work environment | -10ºC ~ +40ºC, ≤85%RH |
| Battery enduring life |
30 hours for continuously use(with 4 350Ω analog load cells)
|
Options
| Second display interface |
serial RS232
|
| Communication interface | RS232/RS485, baud rate 600~9,600(optional) |
| Printing interface |
shared with serial interface, can be connected to serial printer(optional built-in/desktop/thermal printer)
|
| Extensible interface | MODBUS-RTU/TCP, Profibus-dp, USB, Ethernet,RF wireless module |
Application

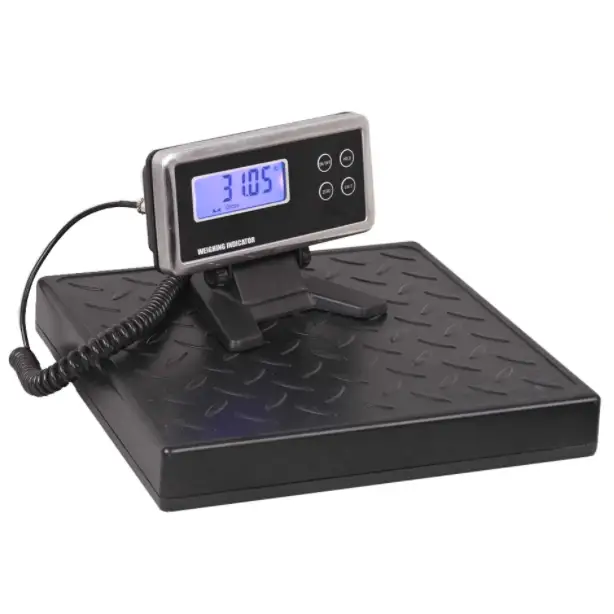

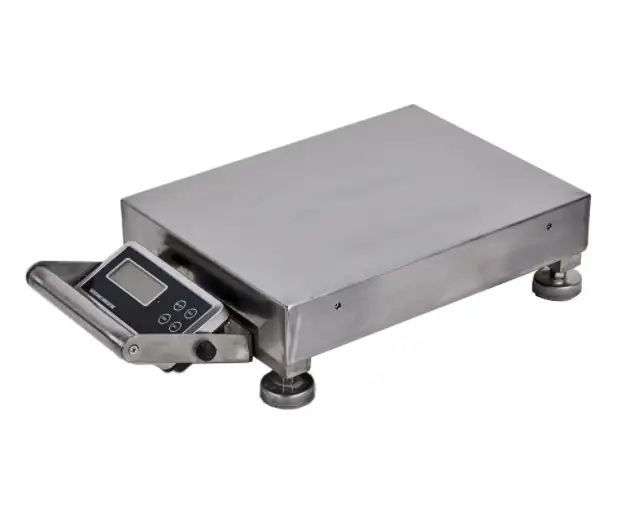

High precision bench scale, floor scale, waterproof benchscale, hopper scale, pet scale, load cells, etc
