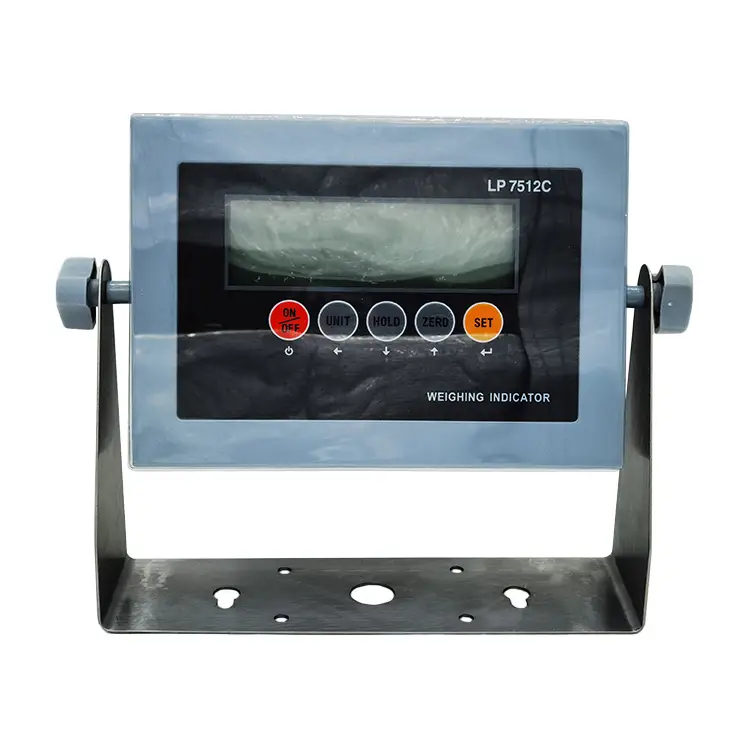

Technologies are essential to the manufacturing of LP7512 Sell Well New Type Carbon Steel Digital Industrial Waterproof Platform Lcd Weighing Indicator.After being upgraded for several generations, the newest product has been proved to have more extensive uses in Weighing Scales and other fields.
Rated Load : >300kg
Accuracy : 30000D
Type : weighing indicator
shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 500 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)
Technical Parameter
|
Display
|
6-digit 20mm LED or 25mm LCD with backlight
|
|
|
Accuracy class
|
OIML III
|
|
|
AD convert
|
∑-Δ, 24bit
|
|
|
Input voltage
|
-10mV ~ 19.5mV
|
|
|
Resolution
|
display15000, internal code 1000000
|
|
|
Minimum resolution
|
1μV/e
|
|
|
Excitation voltage
|
DC5V
|
|
|
Load cell interface
|
4-wire(optional:6-wire)
|
|
|
Drive capability
|
1-4 350Ω analog load cell(s)
|
|
|
Power supply
|
AC110/240V 50/60Hz DC9V or built-in 6V/4Ah lead acid battery
|
|
|
Work environment
|
-10ºC ~ +40ºC, ≤85%RH
|
|
|
Battery enduring life
|
35 hours for continuously use(with 4 350Ω analog load cells)
|
|
|
Options
|
||
|
Second display interface
|
serial RS232
|
|
|
Communication interface
|
RS232/RS485, baud rate 600~9,600(optional)
|
|
|
Printing interface
|
shared with serial interface, can be connected to serial printer(optional built-in/desktop/thermal printer)
|
|
|
Extensible interface
|
MODBUS-RTU/TCP, Profibus-dp, USB, Ethernet,RF wireless module
|
|
|
Application for
|
||
|
High precision bench scale, floor scale, waterproof benchscale, hopper scale, pet scale, load cells, etc
|
||
