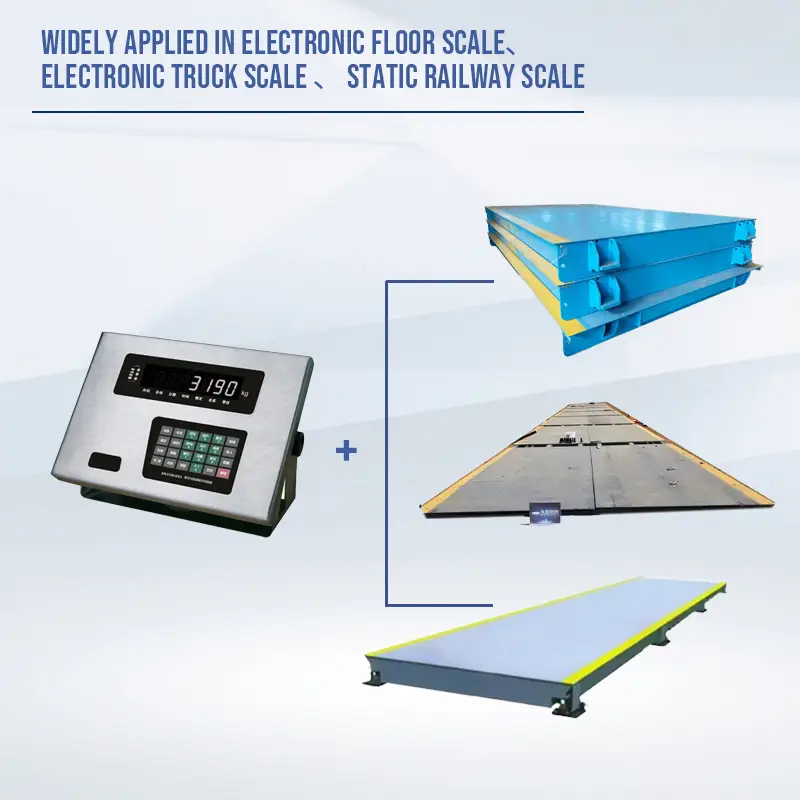

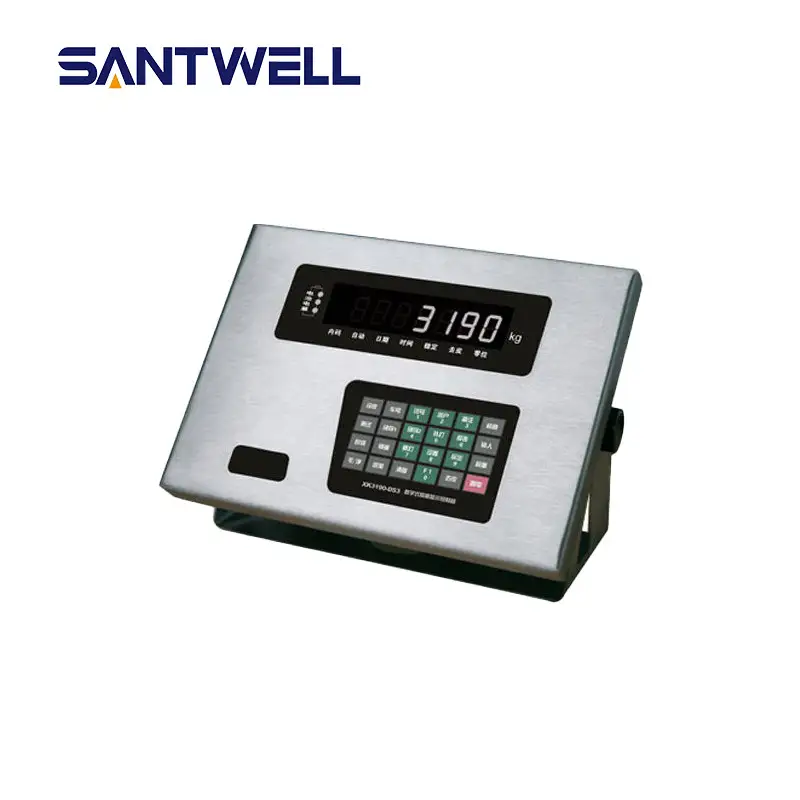

Weighing indicator XK3190-DS3 is widely applied in electronic floor scale、electronic truck scale 、static railway scale and so on
alike static weighing system equipped with 1~16 digital load cell.
Feature:
◆AC/DC power supply
◆Interface adopts new magnet-proof technology
◆With optional interface
(a)Printing data separate module
(b)Digital output module
(c)4～20mA module
Technical Parameter
|
Display
|
6-digit 50mm LED or LCD with backlight
|
|
Accuracy class
|
OIML III
|
|
AD convert
|
∑-Δ, 24bit
|
|
Input voltage
|
-6mV ~ 19.5mV
|
|
Resolution
|
display15000, internal code 1000000
|
|
Minimum resolution
|
1μV/e
|
|
Excitation voltage
|
DC3.3V
|
|
Load cell interface
|
1-4 350Ω analog load cell(s)
|
|
Power supply
|
3 AA-size batteries,or DC6V
|
|
Work environment
|
-10ºC ~ +40ºC, ≤85%RH
|
|
Battery enduring life
|
40 hours for continuously use(with 4 350Ω analog load cells)
|
Options
|
Second display interface
|
serial RS232
|
|
Communication interface
|
RS232/RS485, baud rate 600~9,600(optional)
|
|
Printing interface
|
shared with serial interface, can be connected to serial printer(optional built-in/desktop/thermal printer)
|
|
Extensible interface
|
MODBUS-RTU/TCP, Profibus-dp, USB, Ethernet,RF wireless module
|
Application
Electronic floor scale/bench scale/logistics scale/pet scale/load cells,ect
