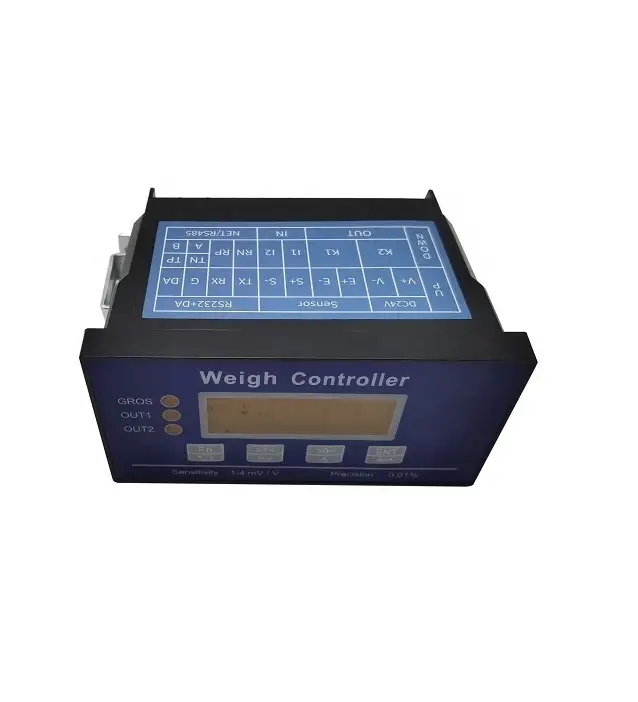

Embedded Plastic Material Control Weighing Meter Digital Weighing Indicator and Weight Controller has accumulated a lot of praise from customers, received good feedback from the market, and solved customer pain points.
Rated Load : >300kg
Accuracy : 30000D
Type : weighing indicator
Shipping: Support Sea freight · Land freight
Technical Parameter
This product uses 24 bit ∑-△ADC chip,and the analog signal of bridge load cell is converted into digital signal. It also have 2 DI and 2 Relay out,and one 0-10V output,In addition to the weighing signal transmission function, it can also output the upper and lower limit alarm. Suitable for 21-26vdc power supply system.24 V power supply is recommended. This product also has the function of sensor circuit detection, that is, when the sensor is not connected or the sensor is faulty (including the wiring falling off, etc.), the corresponding alarm will be given [effective when only one sensor is connected to each channel
| Display |
6-digit 20.2mm red LED
|
| Dimensions |
256×165×170mm
|
| Weight | 1.5kg |
| Inside battery | 6V 4AH |
| Applications | Electronic platform scale, weighing scale, etc. |
Features
1.It can prevent RFI / EMI interference and has strong EMC characteristics；
2.21-26v DC supply；
3.High speed 24 bit ∑ — △ ADC sampling, more than 500Hz sampling, control output and sampling interval synchronization；
4.Complete sensor fault detection function, such as signal overrun, module sampling fault, sensor line connection fault, etc.
5.Complete communication interface ， Standard RS 232 and 485.Optional Ethernet,0-10V out etc.
Connection type
• RS-232 serial interface
• RS485 serial interface
• Bluetooth
• WIFI
• USB
Optional
• Two / four set point function
• 4-20mA analog current output function
• Stainless steel holder
• Mechanical scale
