SAINTBOND / Saintbond LC348D Animal Scale Weighing Scale Sensor Shear Beam Load Cell 3Ton Manufatory Supplier

Add to Wishlist
Share it:

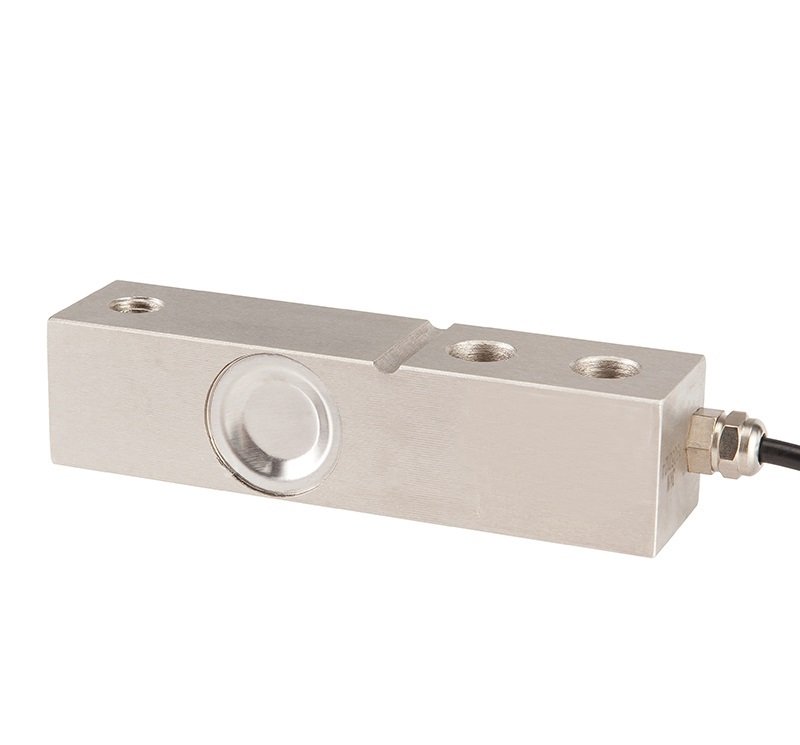

Saintbond LC348D Animal Scale Weighing Scale Sensor Shear Beam Load Cell 3Ton Manufatory Supplier

Product Description

LC348D

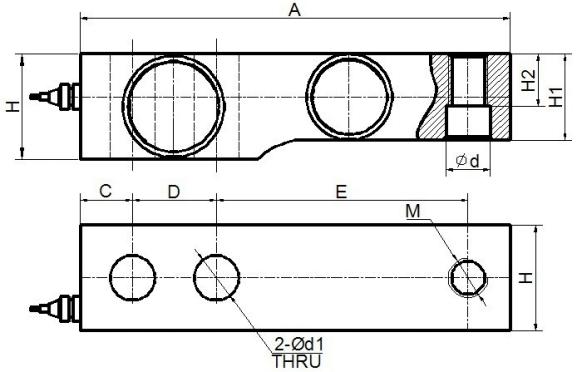

Dimensions Unit:mm:

LC348D

Cap. A B C D E d d1 H H1 H2 M
(kg) (mm)
500 130 53.7 15.8 25.4 76.2 13.5 13.5 31.8 26 15.8 M12x1.75
1000~2000 130 53.7 15.8 25.4 76.2 13.5 13.5 31.8 28 15.8 M12x1.75
2500~5000 171 77.2 19 38.1 95.4 20.5 20.5 38.1 32.1 15.8 M20x2.5



Products Specification:

◎LC348D load cells are available in the capacities 500kg to 5000kg.

◎Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.

◎Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.

◎Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

Technical Parameter:

Rated Load: 500kg~5000kg
Sensitivity: (2.0±0.1%) m V/V,

(3.0±0.1%) mV/V

 Operating Temp. Range: -30~+70℃
Combined Error: ±0.02% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 350±5Ω Element Material: A,SS: Alloy /Stainless Steel
Output Resistance: 350±3Ω Cable: Length=L:3m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60
Product name Saintbond LC348D Animal Scale Weighing Scale Sensor Shear Beam Load Cell 3Ton Manufatory Supplier
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
