SAINTBOND / LCX6009 Multi-component Force Sensors Six-axis Force And Torque Sensors

Add to Wishlist
Share it:

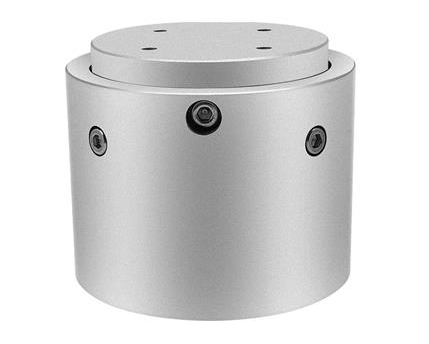

LCX6009 Multi-component Force Sensors Six-axis Force And Torque Sensors


Product Introduction:

◎7075 aluminum alloy, nickel oxide treatment;

◎High precision and sensitivity;

◎Small volume and strong ability to resist eccentric load;

◎Independent research and development, high cost performance;

◎Analog output, which can be used with collector;

◎Structural decoupling design, small coupling between dimensions;

◎Support 485 / can / USB / Ethernet / EtherCAT;

◎Widely used in industrial robots, cooperative robots, medical robots and industrial automation measurement;

Dimension:


Technical Parameter：

Parameter Reference Value Parameter Reference Value
Capacity:

Fx/Fy/Fz

Mx/My/Mz

 100～500N

1～20Nm

 Insulation Resistance ＞2000MG/100VDC
Sensitivity

Fx/Fy/Fz

Mx/My/Mz

 0.5-2.0mV/V Excitation Voltage 3-10V
Comprehensive accuracy 0.1-0.5%F.S Temp. Compensation range -10-+70℃
Nonlinear 0.3%F.S Operating Temp. range -20-+80℃
Lagging 0.3%F.S Safety Load 120%F.S
Repeatability 0.3%F.S Ultimate Overload 150%F.S
Creep (30Minutes) 0.02%F.S/10℃ Degree of Protection IP65
Temp. Sensitivity Drift 0.03%F.S/10℃ Material Science Aluminium Alloy
Zero Temp. Drift 0.03%F.S/10℃ Cable size Φ6×3000mm
Input Impedance 350/700±5Ω Dimension Φ60×42mm
Output Impedance 350/700±5Ω



Product name LCX6009 Multi-component Force Sensors Six-axis Force And Torque Sensors
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
