SAINTBOND / LC536 Button Type Compression Load Cell Button Load Cell

Add to Wishlist
Share it:

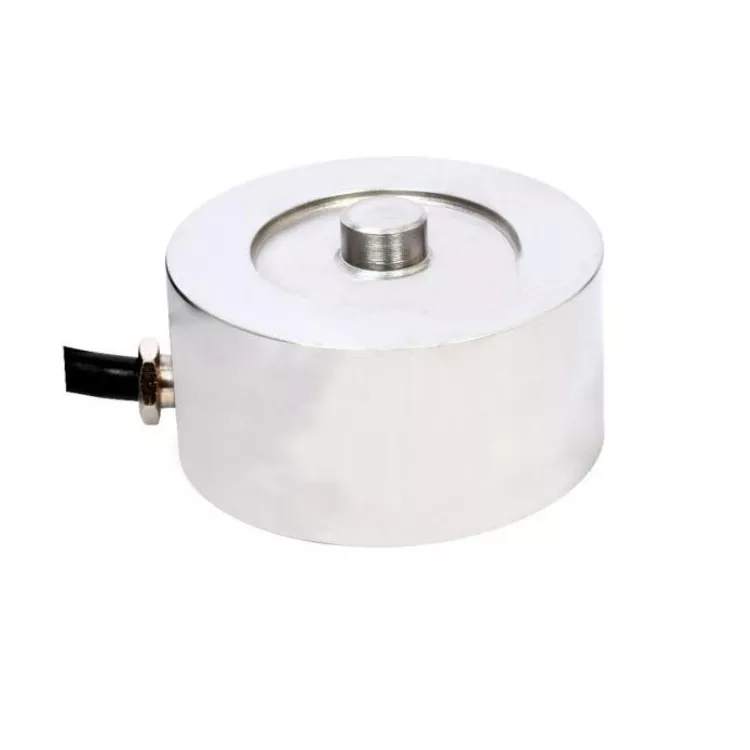

LC536 Button Type Compression Load Cell Button Load Cell

Product Description

LC536

Features :

◎Protection to IP67;

◎Low Profile,high anti-interface;

◎Suitable for motion weighing;

◎Alloy / stainless steel construction;



Application:

◎Pharma machinery;

◎Automation industries;

◎Suitable for testing equipments;

◎Customized design available on request;

 Dimension:

LC536

Capacity A B C D d F E M
(Ton) (mm)
0.1/0.2/0.5t 50 25 5 13 32 34 42 M4×0.7
1/2/3/5t 60 30 5 12 36 42.5 50 M6×1
10/20t 118 45 5 20 52 65.4 90 M8×1.25
30/50t 155 50 5 44 90 103 125 M12×1.75
100t 205 60 7.5 65 130 145 165 M16×2

 Technical Parameter:

Rated Load: 0.1/0.2/0.5/1/2/3/5/10/20/30/50/100t
Sensitivity: (2.0±1%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.3% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Temp. Effect On Zero: ±0.5% F.S/10℃ Maximum Excitation: 15V DC
Temp. Effect On Span: ±0.5% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 750±10Ω Element Material: Alloy / Stainless Steel
Output Resistance: 700±2Ω Cable: Length=L:6m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60



Product name LC536 Button Type Compression Load Cell Button Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
