LC5008 Load Cell Suppliers Button Type Micro Weighing Load Cell Sensor

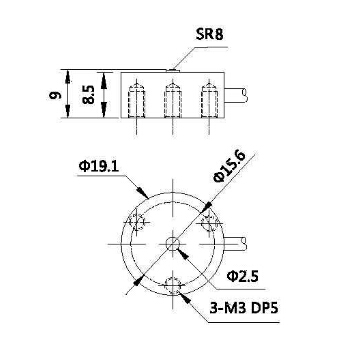

Dimension:
Description:

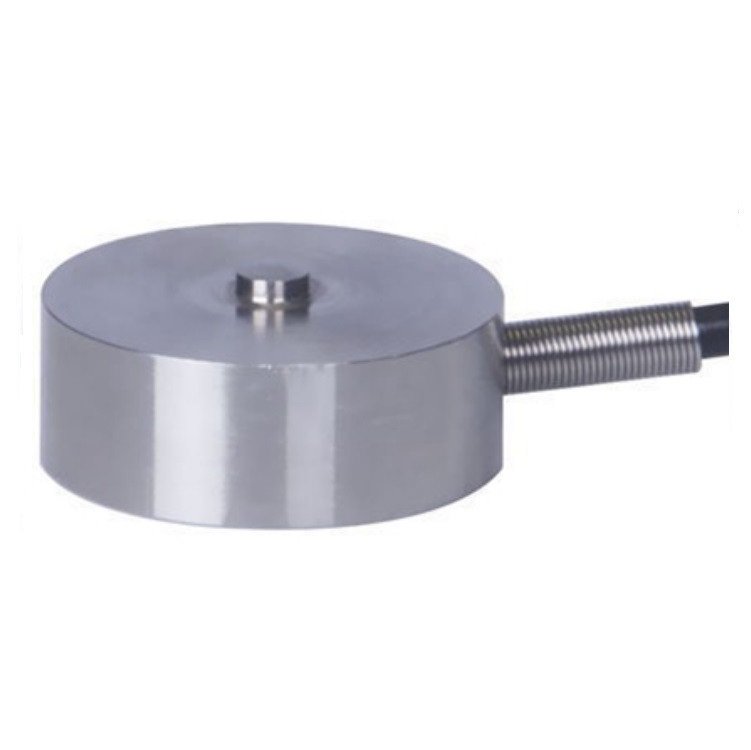

LC5008 Miniature compression load cells are made of advanced strain gauge technology. These load cells are designed for applications in a space limited area.
The capacities of LC5008 start from 5kg to 50kg. The measuring accuracy is 0.2%R.O. (R.O.= Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LC5008 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
Features:
◎Miniature Compression load cells;
◎Capacity:5kg,…,50kg;
◎Accuracy:0.2%R.O;
◎Super micro structure;
◎Aluminum construction with surface anodized/stainless steel construction;
◎Environment protection class:IP65;
Applications:
◎Flat mounting weighing systems;
◎Force measuring in a narrow space;
Technical Data:
