Features:
Using stainless steel material, the size of the micro structure. Suitable for all kinds of small space detection, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc.
Dimension:
Specification:
| Rated Load |
0～5/10/20/50/100/500kg |
Input Impedence: |
350 ±10Ω |
| Output Sensitivity |
1.5±10%mV/V |
Output Impedence: |
350 ± 10Ω |
| Non-linearity |
0.5~1 % F.S. |
Insulation Resistance: |
≥1000MΩ/50V DC |
| Recommended Excitation Vol.: |
5~10VDC/AC |
Temp. Compensation Range: |
— 10ºC ~ 60 ºC |
| Max voltage: |
15V DC/AC |
Operating Temp. Range: |
— 20 ºC~ 80 ºC |
| Repetitiveness: |
0.1 % F.S. |
Safety Overload: |
120 % F.S. |
| Zero Output: |
±0.5 % F.S. |
Limit Overload: |
150 % F.S. |
| Hysteresis: |
0.5% F.S. |
Cable Size: |
4 Core Φ2mm×2000mm |
| Creep(30min): |
0.5% F.S. |
Protection Class: |
IP67 |
| TC SANP: |
0.01% F.S./ºC |
Material Quality: |
Stainless Steel |
| TCO: |
0.01 % F.S. /ºC |
Tired: |
300 000Times |
| Product name |

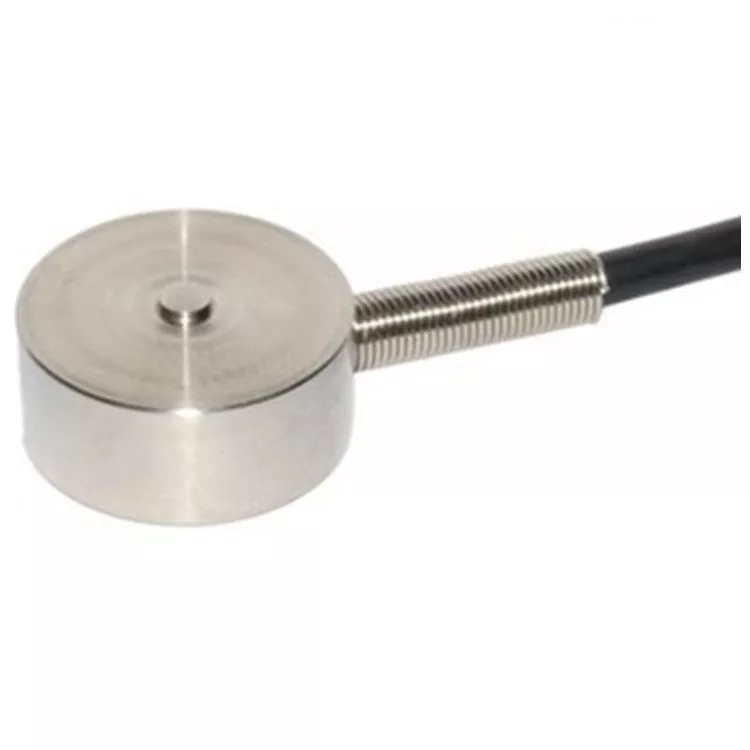

LC5005 Low Profile Load Cells Button Force Transducer Membrane Type Load Cell |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
