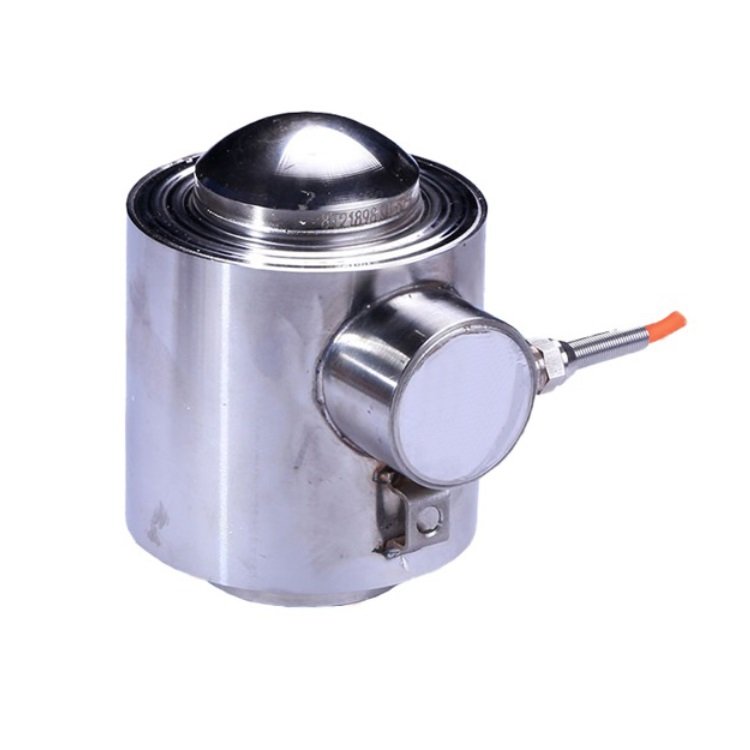

LC436 Compression Column Type Load Cells PR6201 Load Cell 20/3050/60/75/100t
Dimension: Unit:mm
Technical Parameter:
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robot, mold assembly and other industrial test, measurement and systems.
Material: stainless steel, Aluminum alloy
Size: Overload Protection High precision
Model 41 is a low profile “pancake” type load cells. These bonded foil, strain gage load cells are engineered to measure loads from 5 lb to 500,000 lb. The tension/ compression Model 41 is designed with the threaded hole running completely through the center of the cell. Model 41 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills, extruding processes and weighing. Each unit has a welded construction and can be hermetically sealed for added durability. Model 41 load cells are available with optional 0 Vdc to 5 Vdc or 4 mA to 20 mA output.
With the characteristics of imple structure, high reliability and good interchangeability, the column type tension load cell is suitable for various proportioning scales, hopper scales, hook scales, etc.
Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.
Product description:
Capacity ：0~50kg
Stainless steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Compared with traditional column sensor, this structure achieve relatively high accuracy in terms of linearity, anti- side, torsional resistance, and azimuth error
Product description:◆Capacity ：0~200N ◆ Stainless steel ◆High stability ◆ Can be installed in small spaces ◆ Stable anti-interference signal ◆ Compared with traditional column sensor, this structure achieve relatively high accuracy in terms of linearity, anti- side, torsional resistance, and azimuth error. ◆Widely used in automotive pressing, automatic assembly, 3C product testing, new energy product assembly, medical testing, machines Robot field, mold assembly and other industrial testing,motorizing equipment and testing field
Column type sensor, Alloy steel material, Pressure measurement, Electronic weighing system
● Column type sensor
● Alloy steel material
● Pressure measurement
● Electronic weighing system
Product description:
Capacity ：0~200kg
Stainless steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Compared with traditional column sensor, this structure achieve relatively high accuracy in terms of linearity, anti- side, torsional resistance, and azimuth error.
| Model: | NF406 |
| Capacity: | 0.1,0.2,0.5,1,2,5,10,20kN |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.3KG |
| Model: | NF411 |
| Category： | Column Load Cells |
| Capacity: | 5,10,20,50,100kN |
| Rated Output: | 1.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP66 |
| Model: | NF402 |
| Category： | Column Load Cells |
| Capacity: | 10,20,30,50,500,100,200,300,500N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.
Material: stainless steel
Size: Low height, Plane loading
