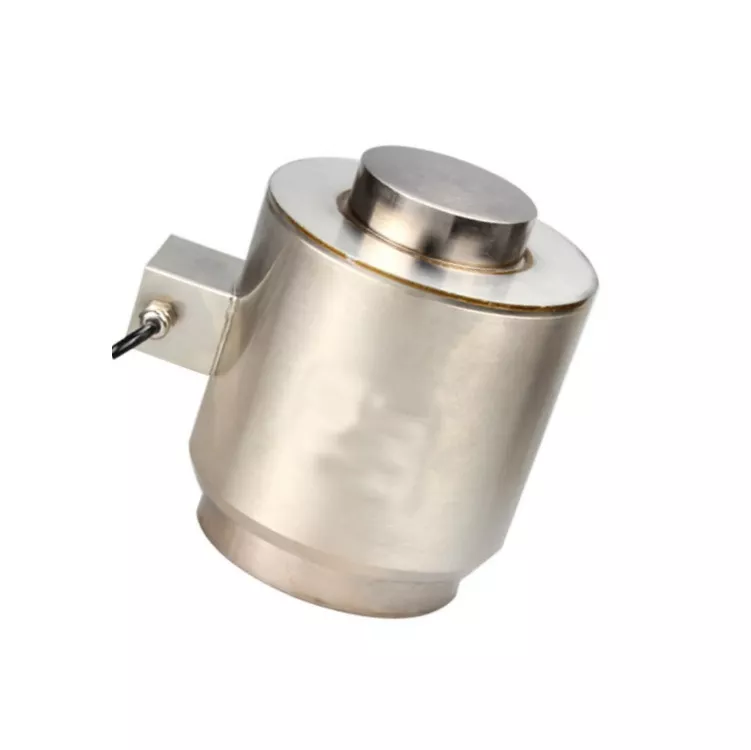

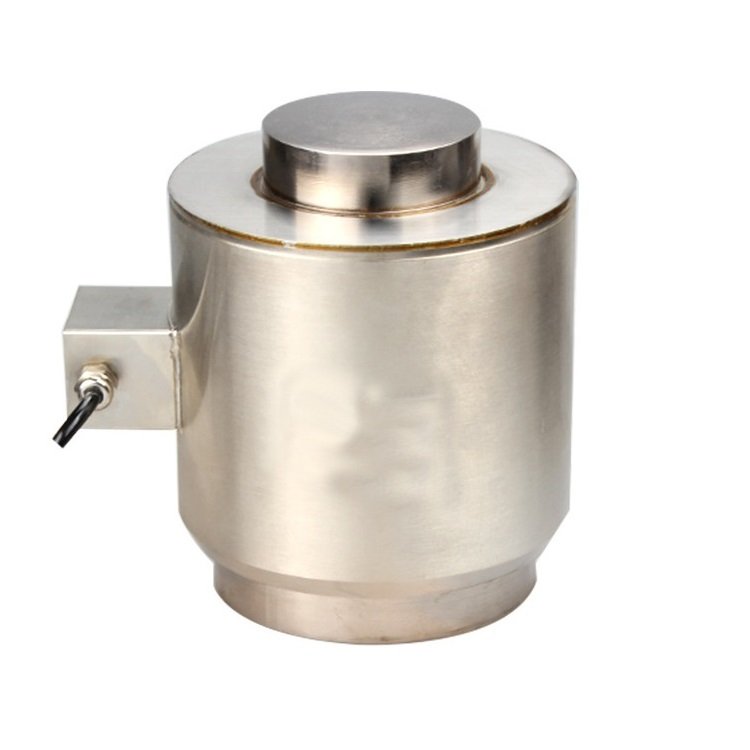

LC401 Canister Load Cell Miniature Load Column Load Cell

Product Description

LC401LC401

Products Specification:

lLC401 load cells are available in the capacities 10t to 100t and 10Klb to 500Klb.And the customized capacity is available by request.
lAlloy Steel and Stainless steel construction,hermetically welded,oil-proof, waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
lColumn structure, good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.



Features:

lHigh accuracy.

lStainless steel construction.

lFour columns construction.

lEasy installation and reliable performance.



Dimensions Unit: mm

Cap./Size A B C D E F G H M SR
10~25t 73 82.5 12 58 6.5 1.8 64 31.8 M12x1.75 152
40~60t 105 127 34 82.5 8.0 11.0 87 58.7 M20x2.5 152
100t 152.4 184.2 72.3 123.8 23.6 21.8 108.2 79.2 M20x2.5 432
200t 167.6 228.6 92 136.3 10 25 123 93.7 M20 432



Technical Parameter:

Rated Load: 10/25/40/60/100t Operating Temp. Range: -30~+70℃
Sensitivity: (2.0±0.1%) mV/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.05% F.S Ultimate Over Load: 250%F.S
Creep Error(30min): ±0.02% F.S Recommend Excitation: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation: 15V DC
Tco: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Tc Span: ±0.02% F.S/10℃ Element Material: A: AL, -SS:SS
Input Resistance: 450±5Ω Cable: Length=16m~20m
Output Resistance: 481±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Black(Input-),

Green(Output+),White(Output-)

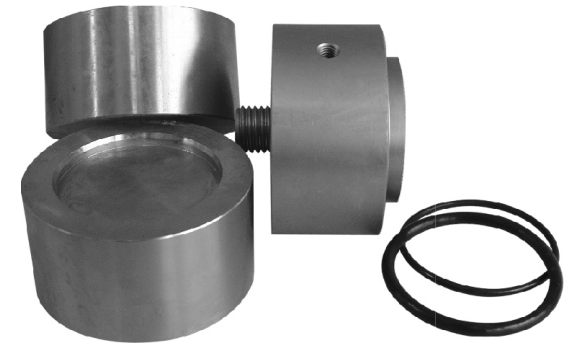

LC401 Part:

LC401-

Features:

Easy installation, good self-aligning ability anti-reversal ability Stainless steel construction, anti-corrosion can be used under hazardous environments Mainly used for platform scales, automobile testing facilities, electronic truck scales and other electronic weighing devices;

lStainless steel Assembled with: LC14A;

lM8 screw hole is for anti-reversal occasion;

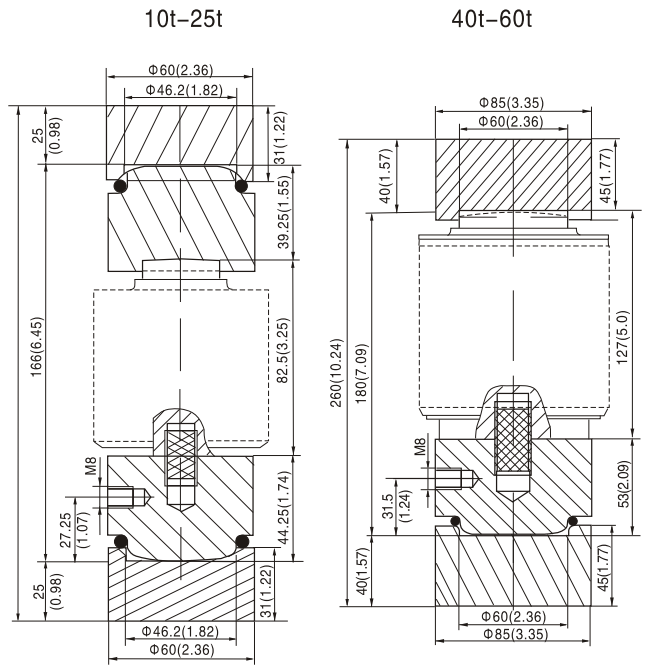

LC401-1



Product name LC401 Canister Load Cell Miniature Load Column Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
