LC3703B Planar Beam Cheap Load Cell Plate Type Load Cell

Product Description

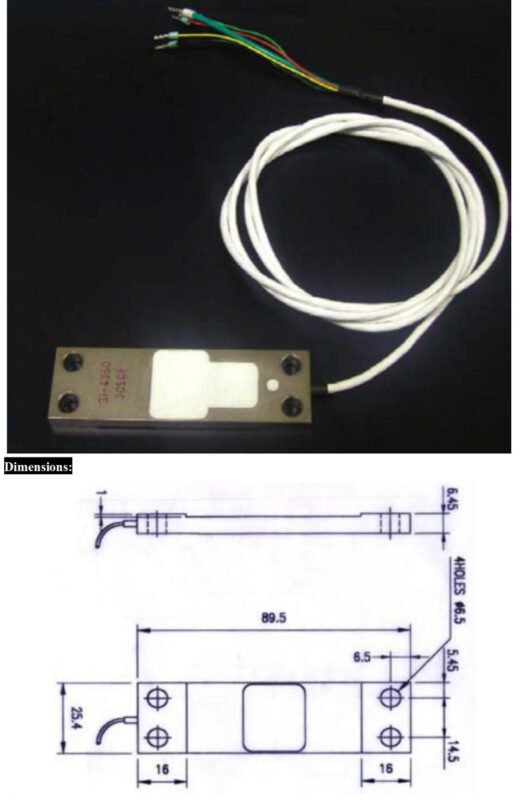

LC3703B_01

Technical Parameter:

Capacity 500kg Input Resistance 1kΩ
Output Sensitivity 2±0.2mV/V Output Resistance 1kΩ
Non-linearity ±0.3%F.S Insulation Resistance ≥1000MΩ (30VDC)
Repeatability ±0.3%F.S Excitation Voltage ≤10V
Hysteresis ±0.5%F.S Operation Temp.Range -10—+40℃
Creep ±0.05(5min)%F.S Overload Capacity 150%F.S
Temp.Effect on Zero ±0.2%F.S/10℃ Material: Alloy Steel
Temp.Effect on Output ±0.05%F.S/10℃ Cable 1m

LC3703B_02

Product name LC3703B Planar Beam Cheap Load Cell Plate Type Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
