SAINTBOND / LC3703 Parallel Beam Micro Load Cell Force Sensors Planar Beam Load Cell Sensor

Add to Wishlist
Share it:

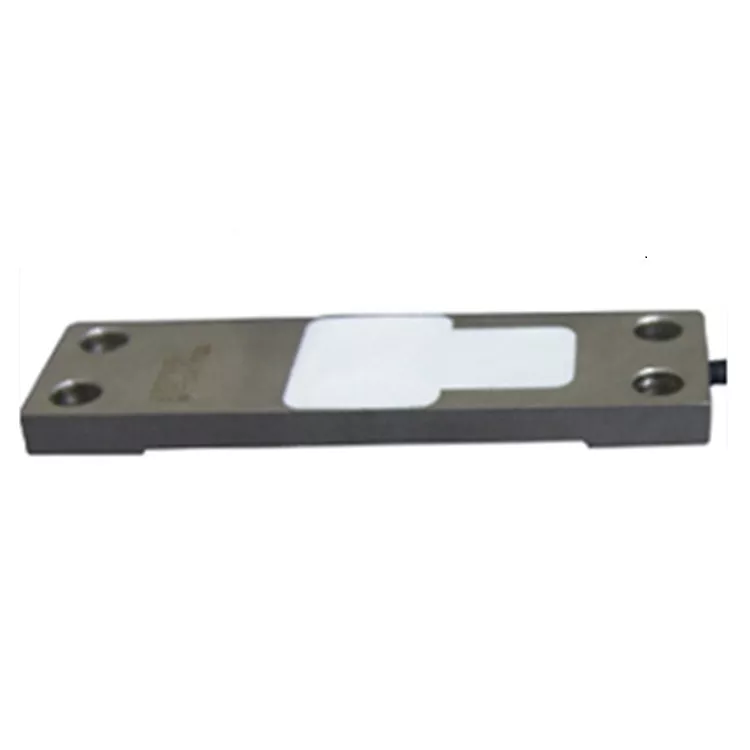

LC3703 Parallel Beam Micro Load Cell Force Sensors Planar Beam Load Cell Sensor

Product Description

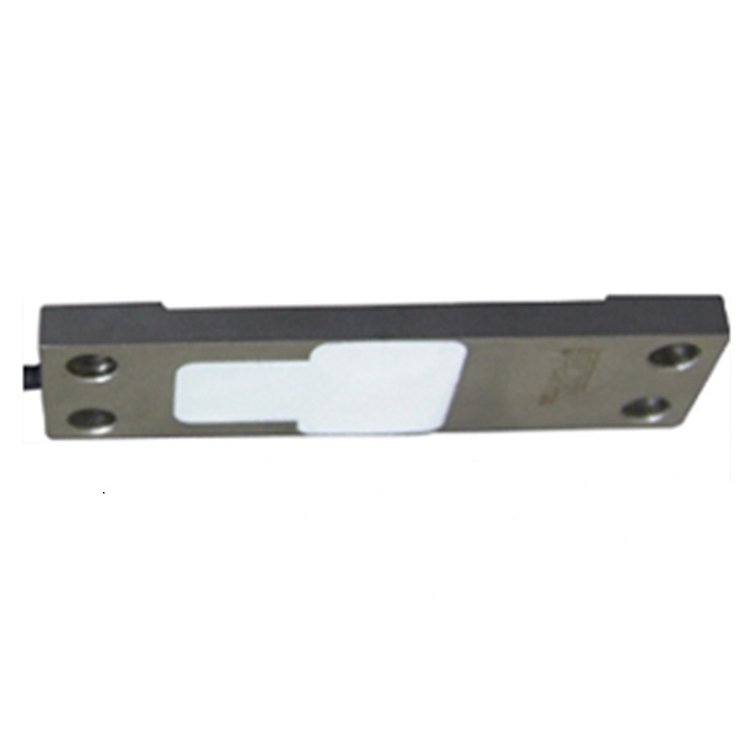

LC3703-2

Dimensions:

LC3703



Technical Parameter:

Model LC3703 Temp.Effect on Output ±0.05%F.S/10℃
Capacity 3110N Zero Output ±0.06%F.S
Comprehensive Error 0.5 Input Resistance 375±5Ω
Output Sensitivity 1.5±0.2mV/V Output Resistance 350±3Ω
Non-linearity ±0.3%F.S Insulation Resistance ≥2000MΩ (50V)
Repeatability ±0.3%F.S Excitation Voltage ≤10V
Hysteresis ±0.5%F.S Operation Temp.Range -10—+40℃
Creep ±0.05(5min)%F.S Overload Capacity 150%F.S
Temp.Effect on Zero ±0.2%F.S/10℃ Recommended Use For suspension force measuring



Product name LC3703 Parallel Beam Micro Load Cell Force Sensors Planar Beam Load Cell Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
