SAINTBOND / LC203M High Capacity Tension Load Cell Compression And Tension Load Cells 1/2/3/5/1/20/30T

Add to Wishlist
Share it:

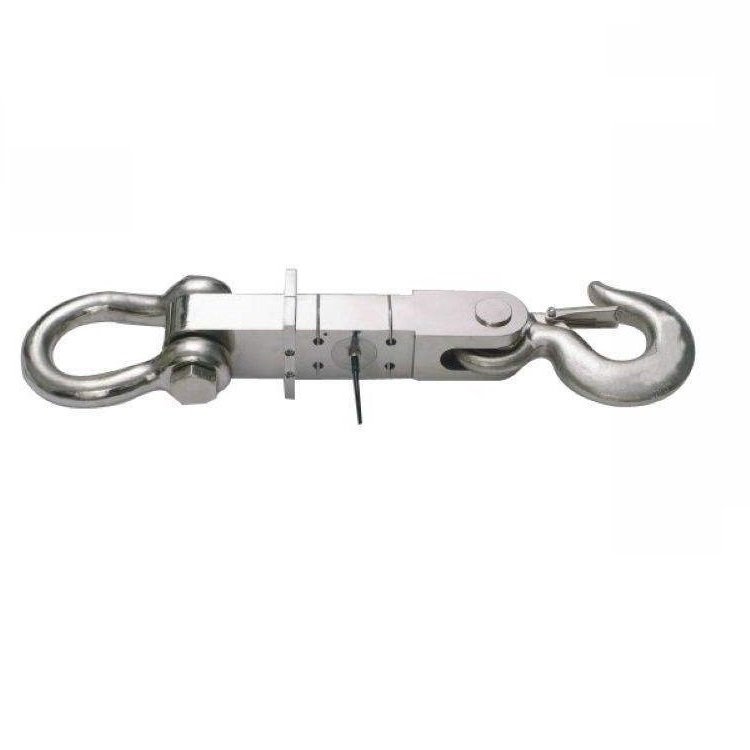

LC203M High Capacity Tension Load Cell Compression And Tension Load Cells 1/2/3/5/1/20/30T

Product Description

LC203MLC203M

Dimensions: Unit: mm

Cap./Size A B C D E F G H1×H2 J1×J2
1~3t 443.0 260.0 98.0 110.0 56.0 43.0 68.0 60×70 74×84
5t 547.0 303.0 118.0 120.0 68.0 54.0 92.0 65×90 85×110
10t 611.0 325.0 133.0 130.0 80.0 60.0 99.0 76×110 100×130
20t 740.0 354.0 158.0 148.0 106.0 70.0 146.0 80×130 110×160
30t 911.0 436.0 188.0 170.0 102.0 80.0 184.0 96×136 120×160

 Product Characteristics:

Tension link crane scale load cell LC203M series is special load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells, high temperature load cell, anti-lighting load cell, High precision, strong overload protection capacity and anti-deflective loading. The load cell with special hook and ring, easy installation.LC203 Weigh modules are used for tank weighing, hopper weighing, conveyor scales, scale conversion. Tension weigh modules are designed for use with suspended tanks, dosing hoppers and other devices that are suspended from a support structure. We offer a wide range of capacities to meet the needs of a variety of weighing applications.

Technical Parameter：

Rated Load: 1/2/3/5/1/20/30t Operating Temp. Range: -30~+70℃
Sensitivity: (1.5±0.1%) m V/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.02% F.S Ultimate Over Load: 200%F.S
Creep Error(30min): ±0.02% F.S Recommend Excitation: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation: 15V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Temp. Effect On Span: ±0.02% F.S/10℃ Element Material: Alloy / Stainless Steel
Input Resistance: 750±5Ω Cable: Length=L:1m
Output Resistance: 702±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Black(Input-),

Green(Output+),White(Output-)
Product name LC203M High Capacity Tension Load Cell Compression And Tension Load Cells 1/2/3/5/1/20/30T
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
