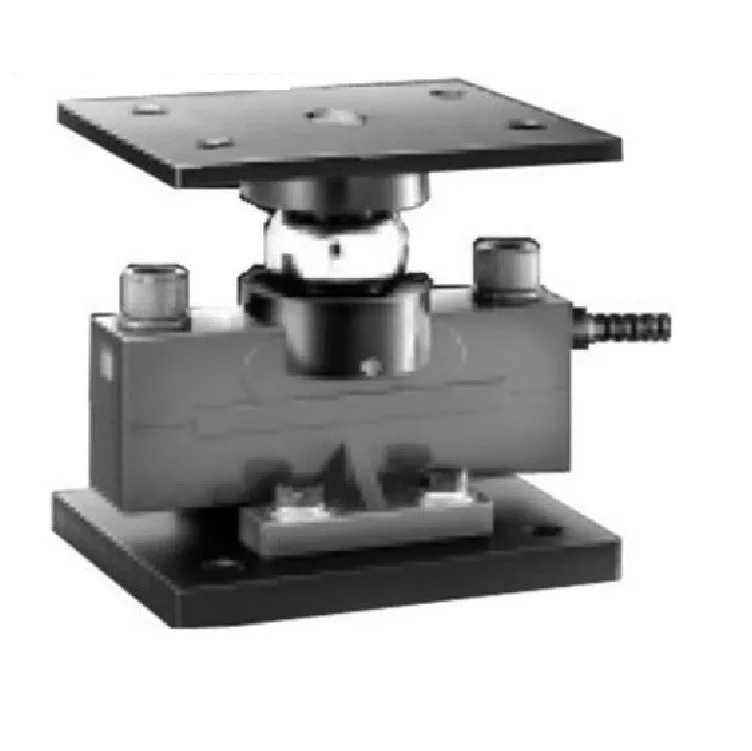

LC114 Double Link Beam Load Cell 1000kg Tuck Weighing Load Cell Weighing Sensor

Product Description

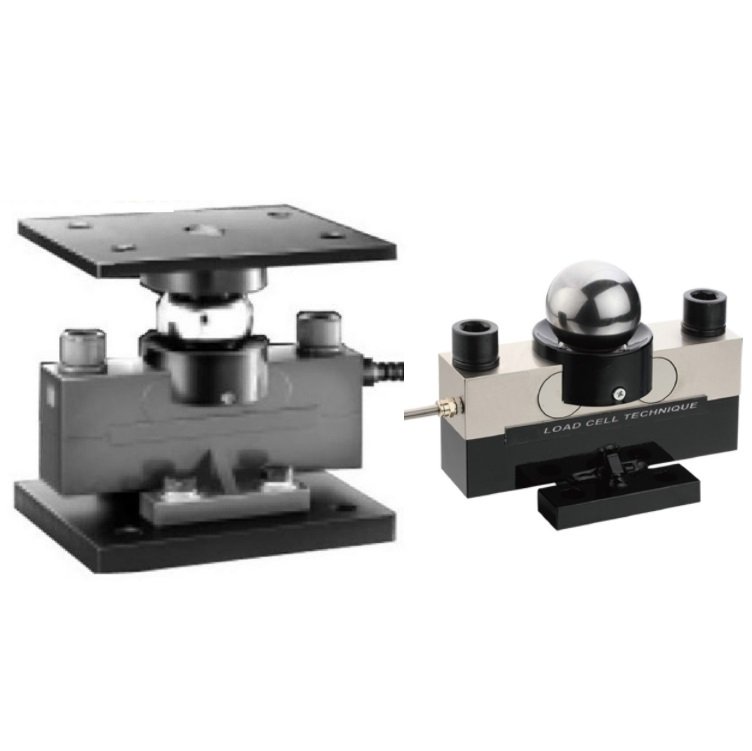

LC114-5

Dimensions Unit:mm

LC114

Product Characteristics:

LC114 load cell The construction with steel ball and cup have much advantages in self-returning place. High precision and reliability super stability. Easy installation, Interchangeability good. Have good moisture-proof seal (Laser welding and glue welding optional).The load cell can adapt to adverse work environment. Suitable  for truck scale, railway scale, hopper scale, and other special scales for weighing and force measurement.

Technical Parameter:

Rated Load: 10/15/20/25/30/40/50t
Sensitivity: (2.0±0.1%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.02% F.S Max. Safe Over Load: 150,120 (40~50t)%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 300,200(40~50t)%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Tco: ±0.02% F.S/10℃ Max. Excitation Voltage: 15V DC
Tc Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 750±5Ω Element Material: Alloy Steel, Stainless Steel
Output Resistance: 701±2Ω Cable: Length=L:12m(10~25t),

12/16m(30t).16m(40~50t)
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60



Product name LC114 Double Link Beam Load Cell 1000kg Tuck Weighing Load Cell Weighing Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
