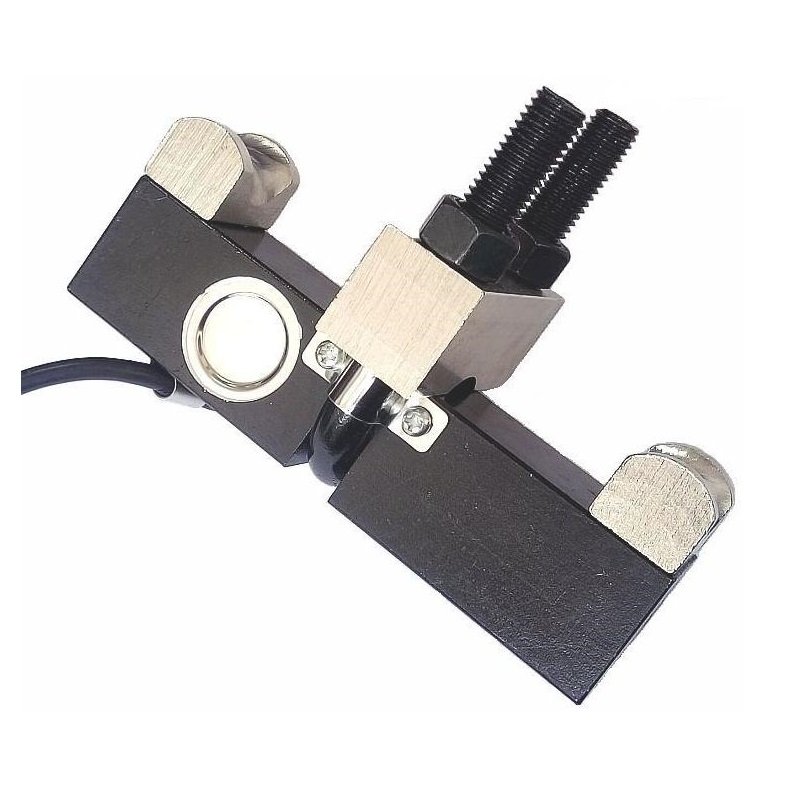

LC104G Weighting Transducer Elevator Load Cell Tension Sensor for Measuring Wire Rope Yarn

Product Description

LC104G-1

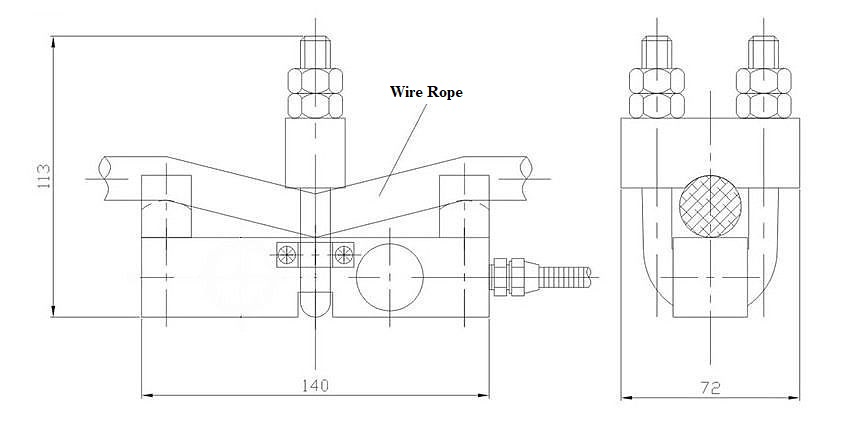

Dimension: in mm

LC104G

Products specification:

This mechanical load cell has been designed to provide a trip point for lifting systems which have a dead end wire rope. The trip point provides a signal that the user may employ depending on his requirements, e.g.

◎For load limiting in lifting systems

◎To limit the speed as a function of the load on traversing

◎To limit the effort applied for pulling

This universal load cell is recommended for its simplicity and quick lifting capability.



Technical Parameter:

Wire Rope Size: 6~26mm(1~5t) Operating Temperature Range: -30~+70℃
Sensitivity: (1.0±0.1%) mV/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.1% F.S Ultimate Over Load: 300%F.S
Creep Error(30min): ±0.02% F.S Recommend Excitation Vol.: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation Voltage: 15V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Sealing Class: IP67
Temp. Effect On Span: ±0.02% F.S/10℃ Element Material: Alloy Steel, Stainless Steel
Input Resistance: 385±5Ω Cable: Length=1m
Output Resistance: 352±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Green(Output+),

Black(Input-),White(Output-)

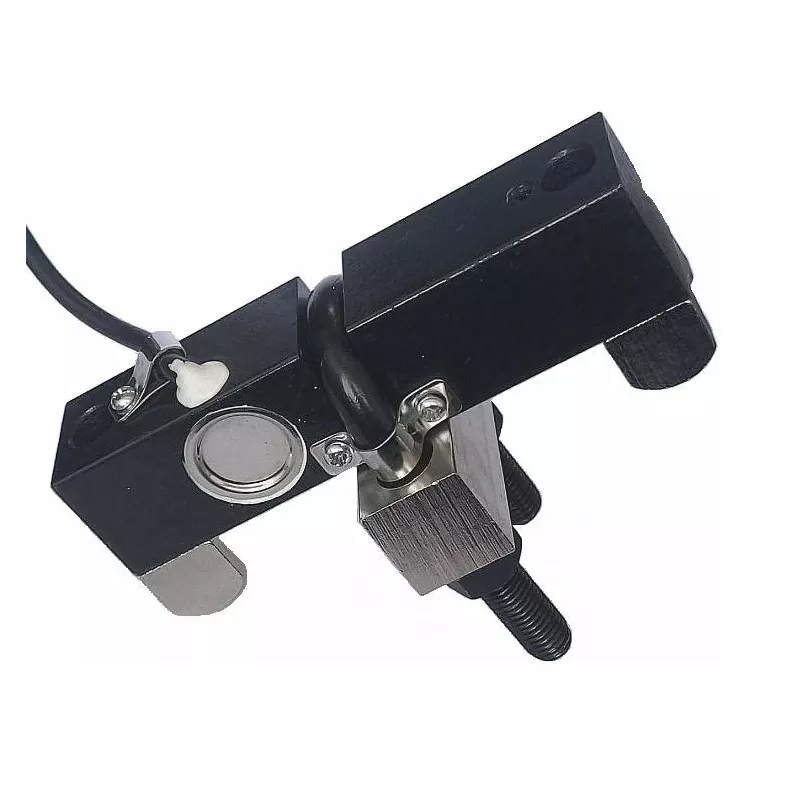

LC104G



Product name LC104G Weighting Transducer Elevator Load Cell Tension Sensor for Measuring Wire Rope Yarn
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
