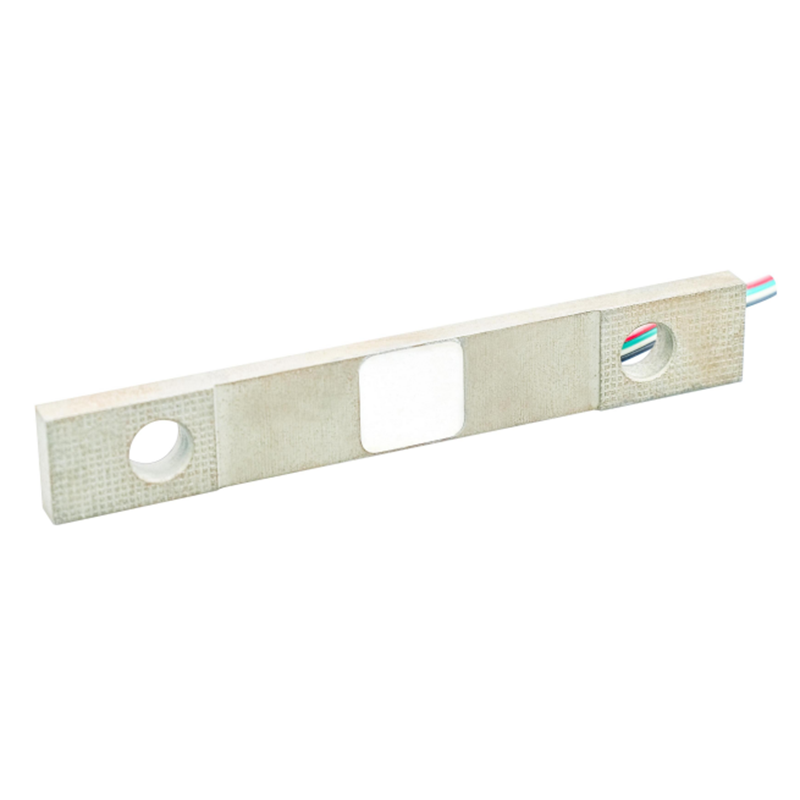

RJ-8521 Flat panel Load Cell
Technical Parameters
| Measuring Range | kg | 100 |
| Sensitivity | mV/V | 2.0 |
| Accuracy | %FS | ±0.2 |
| Creep | %FS | ±0.05 |
| Input Impedance | Ω | 380±10 |
| Output Impedance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000 (100VDC) |
| Zero Balance | %FS | ±2 |
| Temperature Effect on Sensitivity | %FS/10℃ | ±0.05 |
| Temperature Effect on Zero | %FS/10℃ | ±0.05 |
| Compensation Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Recommended Excitation Voltage | V | 5～12 |
| Permissible Excitation Voltage | V | 18 |
| Safe Overload | %FS | 150 |
| Ultimate Overload | %FS | 200 |
| Protection Level | IP65 | |
| Cable Specification | mm | Ф1 |
| Cable Length | mm | 100 |
| Material | Alloy Steel |
Dimensions (mm)

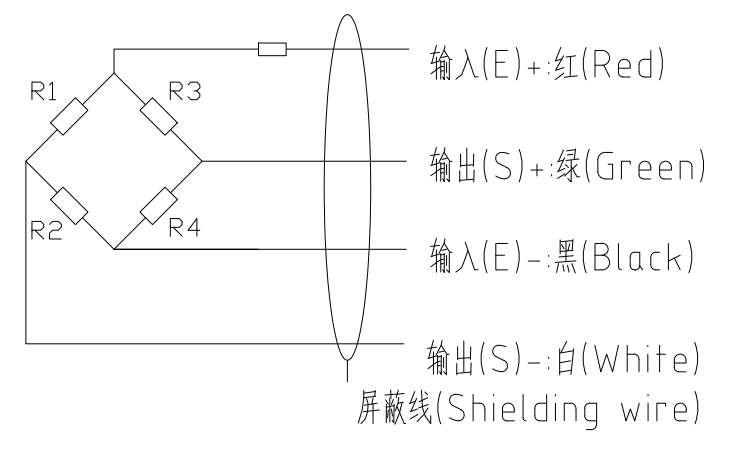

Circuit Connection
