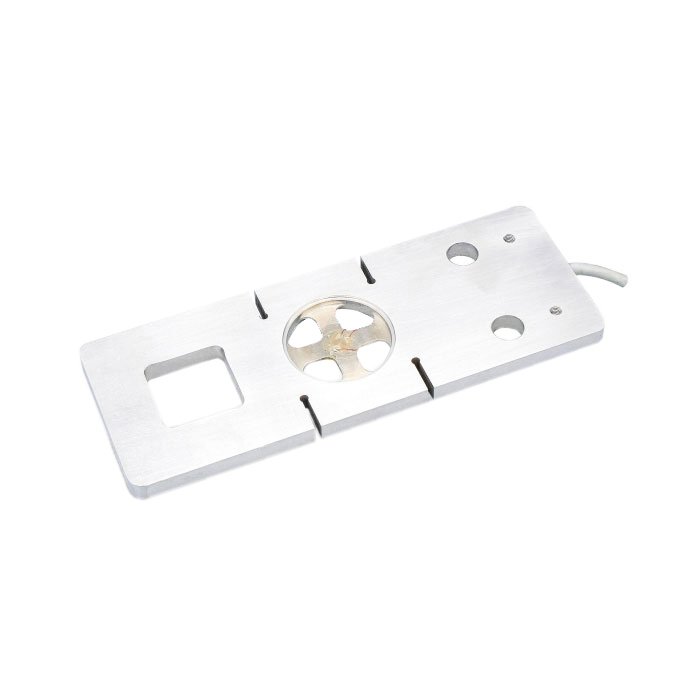

RJ-8230 Flat panel Load Cell
Technical Parameters
|
Capacity
|
Kg
|
2
|
|
Sensitivity
|
mV/V
|
2.0
|
|
Accuracy
|
%FS
|
±0.02
|
|
Creep（15min)
|
%FS
|
±0.05
|
|
Input Resistance
|
Ω
|
380±10
|
|
Output Resistance
|
Ω
|
350±5
|
|
Insulation Resistance
|
MΩ
|
≥5000（100VDC）
|
|
Zero Balance
|
%FS
|
±2
|
|
Temperature Effects on Span
|
%FS/10℃
|
±0.05
|
|
Temperature Effect on Zero
|
%FS/10℃
|
±0.05
|
|
Rated Temperature Range
|
℃
|
-10～+60
|
|
Operating Temperature Range
|
℃
|
-20～+80
|
|
Proposed Excitation Voltage
|
V
|
5～12
|
|
Allowed Excitation Voltage
|
V
|
18
|
|
Safe Overload
|
%FS
|
150
|
|
Ultimate Overload
|
%FS
|
200
|
|
Protection
|
IP65
|
|
|
Cable specification
|
mm
|
Ф5
|
|
Cable length
|
m
|
2
|
|
Material
|
Stainless steel
|

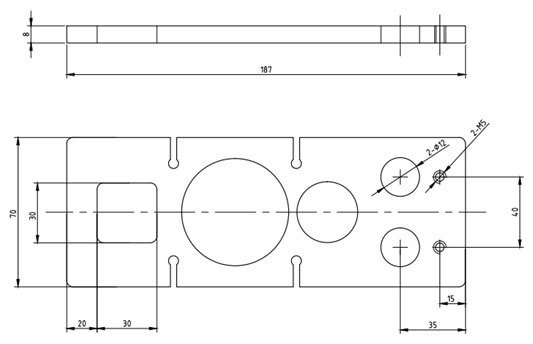

Dimensions (mm)

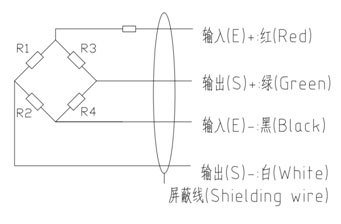

Circuit Connection
