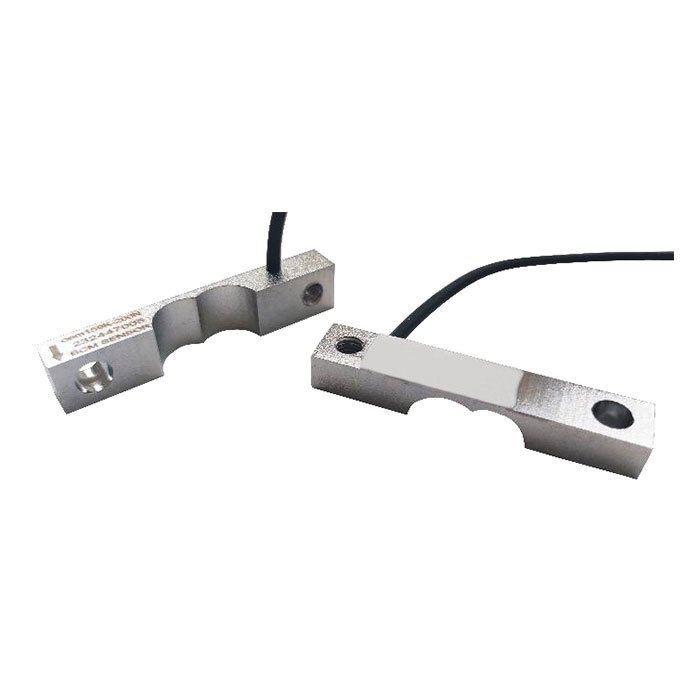

RJ-8159K Cantilever beam Load Cell
Technical parameters
| Measuring range | Kg | 20 |
| Sensitivity | mV/V | 2.0±0.2 |
| Accuracy | %FS | ±0.1 |
| Creep | %FS | ±0.06 |
| Input impedance | Ω | 1000±30 |
| Output impedance | Ω | 1000±10 |
| Insulation resistance | M Ω | ≥5000 (100VDC) |
| Zero balance | %FS | ±3 |
| Temperature effect on sensitivity | %FS/10℃ | ±0.05 |
| Temperature effect on zero | %FS/10℃ | ±0.05 |
| Compensation temperature range | ℃ | -10～+40 |
| Operating temperature range | ℃ | -20～+60 |
| Recommended excitation voltage | Vdc | 6～12 |
| Permissible excitation voltage | Vdc | 18 |
| Safe overload | %FS | 120 |
| Limit overload | %FS | 150 |
| Protection level | IP65 | |
| Material | Stainless Steel | |

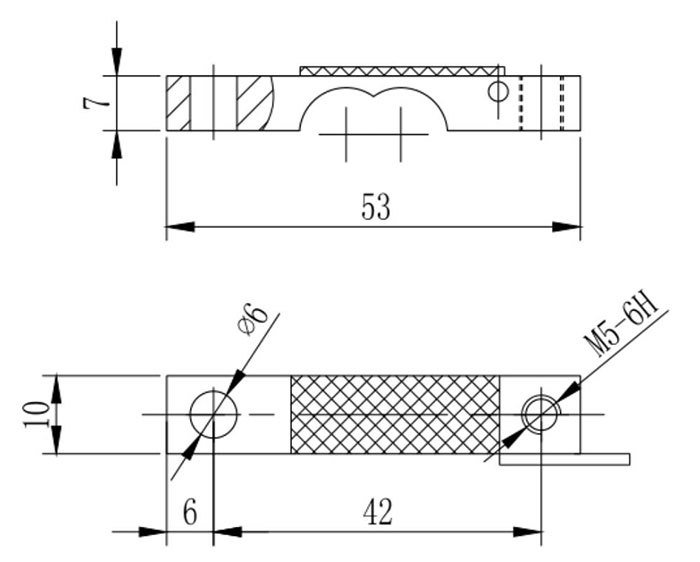

Dimensions (mm)

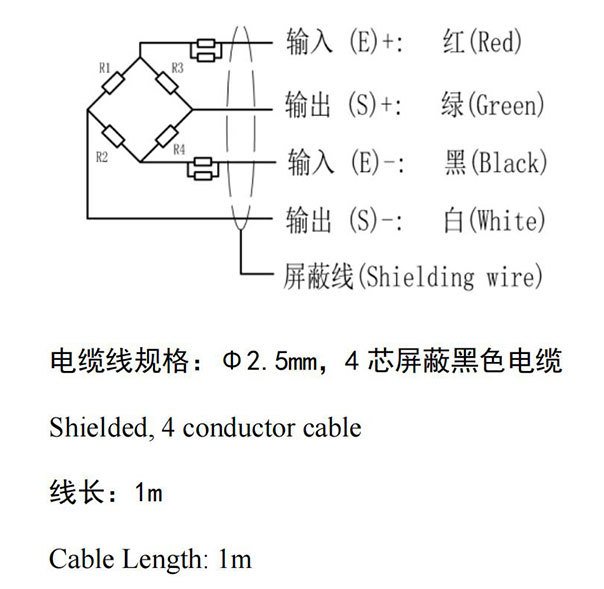

Circuit connection
