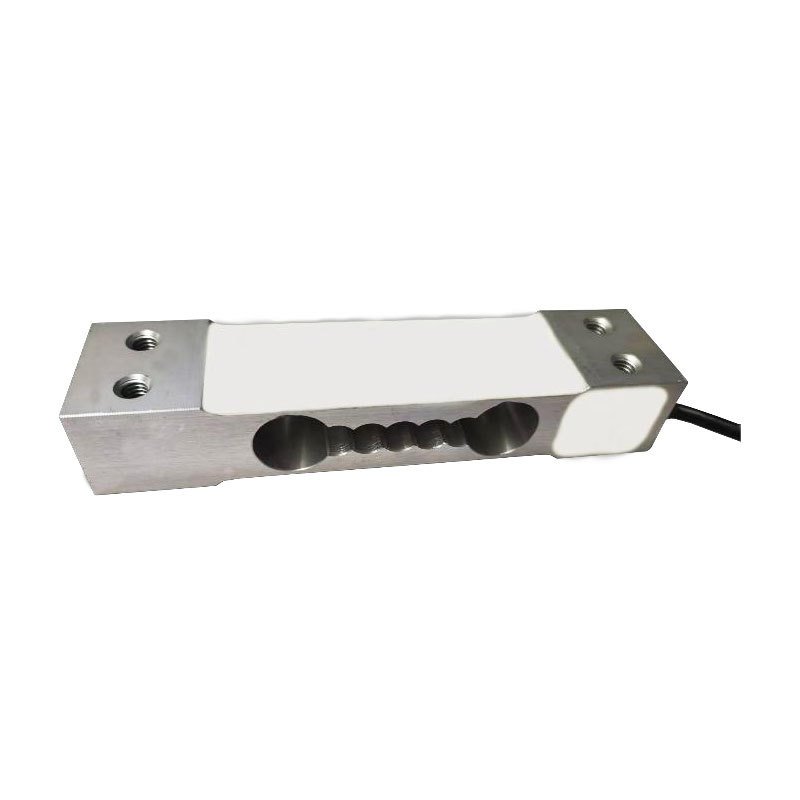

RJ-6530-LK Platform scale Load Cell
Technical parameters
| Measuring range | Kg | 3\5\8\10\15\20\30\40\50 |
| Sensitivity | mV/V | 2.0±0.2 |
| Accuracy | %FS | ±0.02 |
| Creep | %FS | ±0.015 |
| Input impedance | Ω | 406±30 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（100VDC） |
| Zero balance | %FS | ±2 |
| Temperature effect on sensitivity | %FS/10℃ | ±0.02 |
| Temperature effect on zero | %FS/10℃ | ±0.02 |
| Compensation temperature range | ℃ | -10～+60 |
| Operating temperature range | ℃ | -20～+80 |
| Recommended excitation voltage | Vdc | 6～12 |
| Allowable excitation voltage | Vdc | 18 |
| Safe overload | %FS | 120 |
| Limit overload | %FS | 150 |
| Protection level | IP65 | |
| Cable specification | mm | Ф4 |
| Cable length | m | 0.4 |
| Material | Aluminum Alloy | |

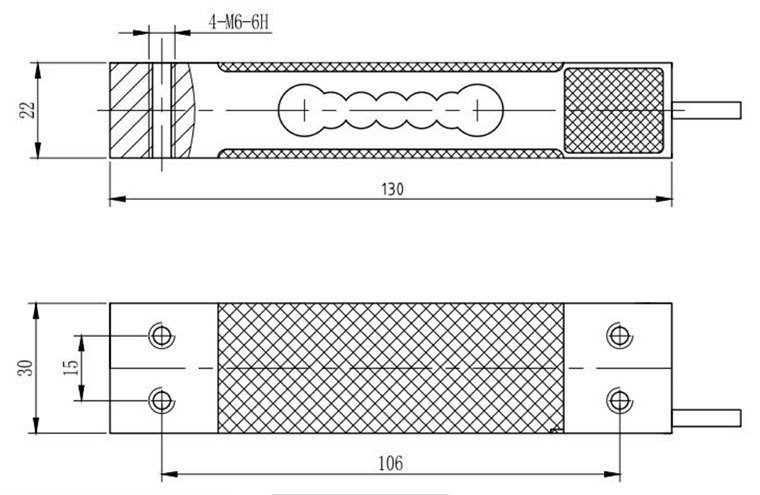

Dimensions (mm)
Circuit connection
