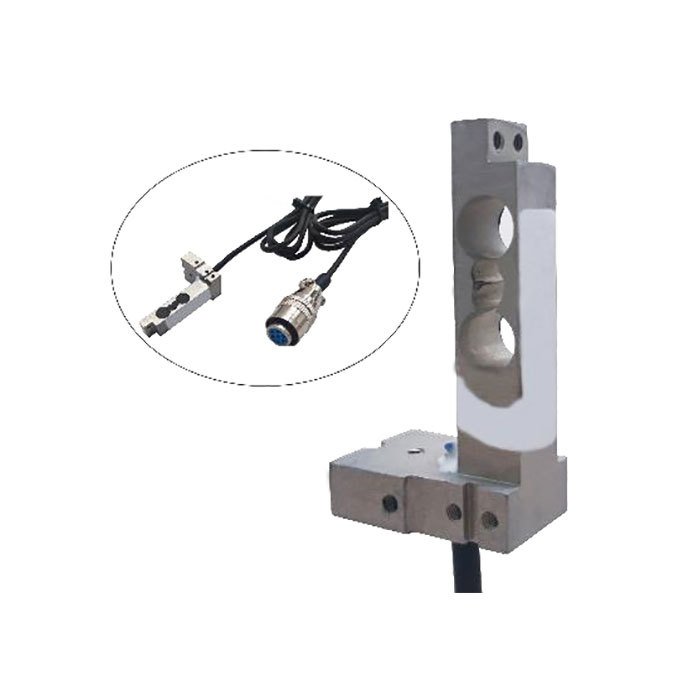

RJ-65123 Cantilever beam Load Cell
Technical parameters
| Measuring range | Kg | 0.5 |
| Sensitivity | mV/V | 1.0±0.2 |
| Accuracy | %FS | ±0.05 |
| Creep | %FS | ±0.02 |
| Input impedance | Ω | 1090±30 |
| Output impedance | Ω | 1000±5 |
| Insulation resistance | MΩ | ≥5000 (100VDC) |
| Zero balance | %FS | ±2 |
| Temperature effect on sensitivity | %FS/10℃ | ±0.05 |
| Temperature effect on zero | %FS/10℃ | ±0.05 |
| Compensation temperature range | ℃ | 0～+40 |
| Operating temperature range | ℃ | -10～+60 |
| Recommended excitation voltage | Vdc | 6～12 |
| Permissible excitation voltage | Vdc | 18 |
| Safe overload | %FS | 120 |
| Limit overload | %FS | 150 |
| Protection level | IP65 | |
| Material | Aluminum Alloy |

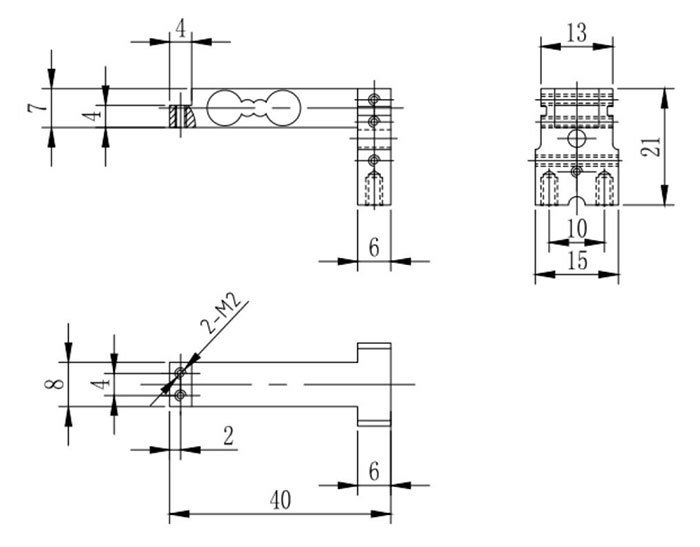

Dimensions (mm)

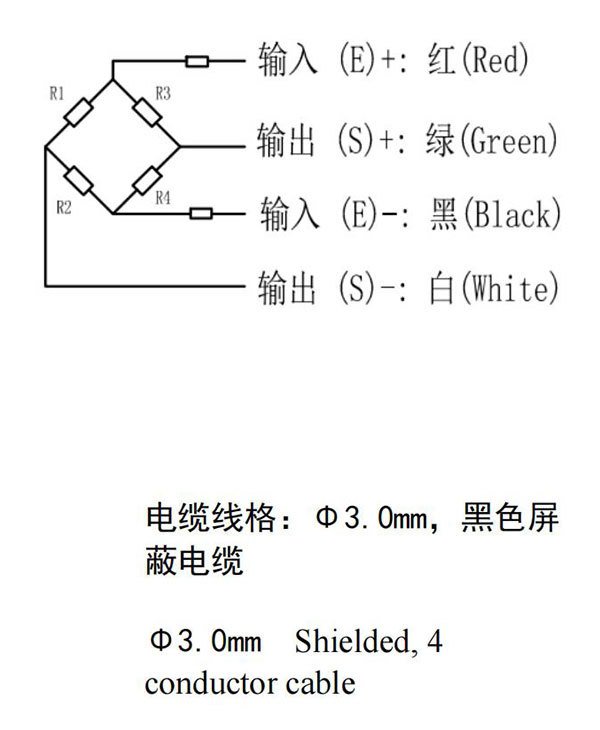

Circuit connection
