The PSD-F1 Load Cell is a heavy-duty weighing component engineered exclusively for industrial bulk weighing equipment—ideal for integration into truck scales (floor scales) and hopper scales. Its robust cantilever-beam design, high-strength alloy steel build, and smart functional features ensure reliable, accurate weight measurement for heavy loads and bulk materials, making it a top choice for logistics, construction, chemical, and agricultural sectors.

Miniature load cell can bear both tension and compression force, with metal-foil strain gauge, all stainless steel, small size, 1.0±0.2mV/V sensitivity. Miniature tension and compression load cell is used for force tester, riveting machine, laminator and welding machine.

Buy affordable tension and compression load cell, threaded inline, support 0-20kN measuring range and repeatability of 0.5% F.S. with 350/700Ω impedance and 10kHz response frequency. The load cells are designed with a stainless steel body for durability, and can withstand an operating voltage of 5-15 V.

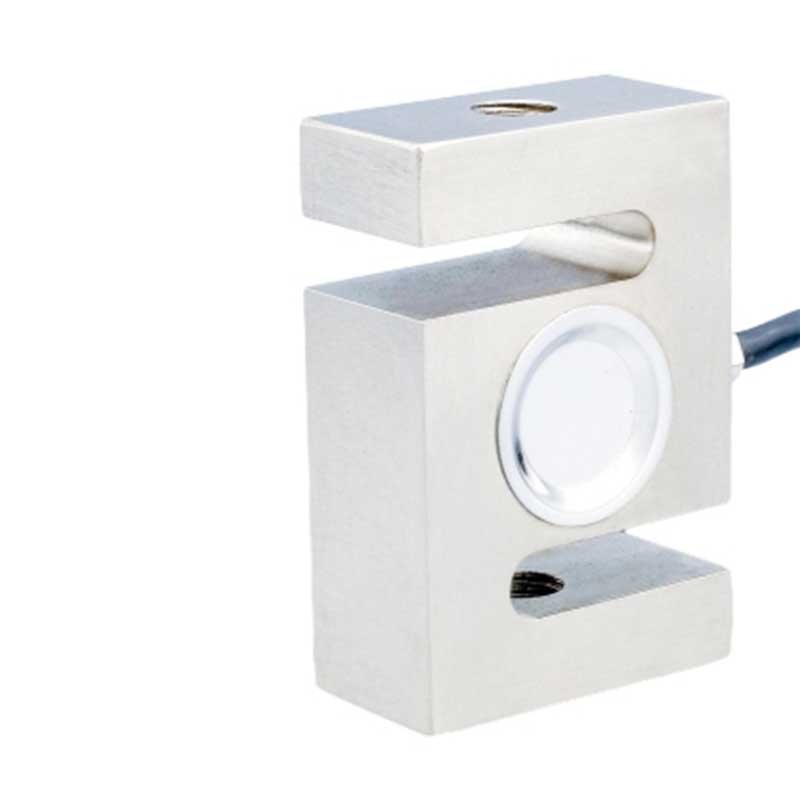

S type micro load cell can bear both tension and pressure, with small size 5*16*19.1mm, good stability, good output symmetry, high accuracy, low temperature drift, compact structure and overload protection. Micro load cell is suited to use in restricted spaces such as manipulator and robot, and specifically used for button tester and force gauge.

The Model 127 load cells combines both a compact form and high precision to offer a superior tension force transducer. The one-piece S-shaped design achieves a maximum non-linearity of 0.03 % full scale for load ranges of 50 kg and 100 kg.

Tension and compression load cell can bear both tension and pressure, with good anti-eccentric load performance, low height, all sealed structure and complete specifications. Miniature load cell with optional capacity 1 kg/ 100kg/ 200 kg/ 300kg/ 500 kg is suited to use in restricted spaces, such as using in vehicle/test instrument/laminator measurement and control.

High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.

The PSD-F6 Load Cell is a high-performance weighing component engineered for industrial bulk weighing—specialized for integration into belt scales (including skirted or standard belt conveyors) and hopper scales. Its unique bellows-type cantilever-beam structure, heavy-duty alloy steel build, and smart functional design ensure reliable, accurate weight measurement for dynamic or static bulk materials, making it ideal for mining, chemical processing, logistics, and agricultural sectors.

The PSD-X5 Load Cell is a specialized weighing component engineered for compact, accuracy-critical applications—perfect for integration into smart shelves, electronic price computing scales, and small-platform electronic scales. Its optimized cantilever-beam design and lightweight, durable build make it a reliable choice for retail, logistics, and small-scale industrial use, where space efficiency and consistent weight measurement directly enhance operational performance.

The KCLBF Load Cell is a reliable, user-centric weighing component engineered for industrial scenarios—ideal for integration into bench scales, hopper scales, conveyor weighing systems, and force-monitoring setups. Its optimized S-type structure, tool-free installability, and robust performance make it a top choice for manufacturing, logistics, and processing industries, where efficient deployment and accurate weight data directly drive operational efficiency.

이 제품은 낮은 높이와 높은 안정성, 정밀성을 갖춘 구조로 설계되었으며, 다양한 계량 및 자동화 테스트 장비에 폭넓게 활용됩니다.
