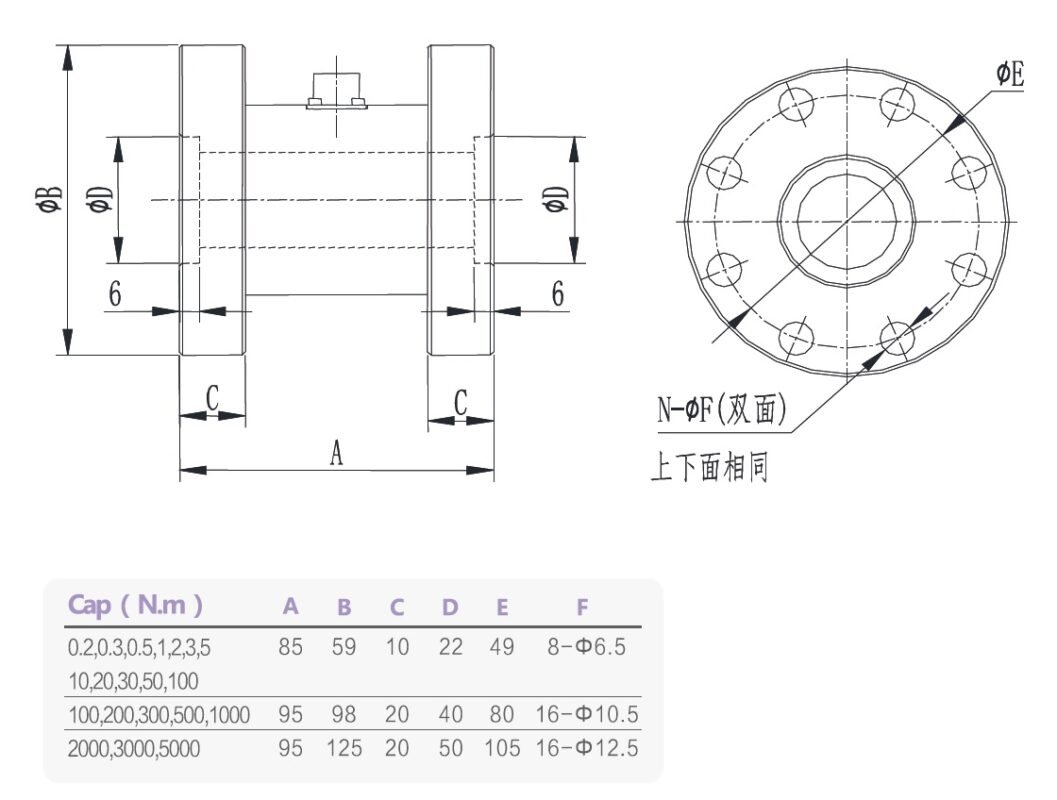

Installation dimensions
Parameters Table
Features and applications
Static torque sensor
Compact structure, easy to install
Protection level: IP 65
For static, discontinuous rotation torque measurement
Force direction
Wiring
Widely used for torque value measurement of static and discontinuous rotation, professional screwdriver, screw tightening, etc .; Compact structure for easy installation;
Material: Alloy steel
Features: Strong bending moment Long frequency life
Static Torque Sensor
D 37.6mm*H 50.8mm
Capacity: 1,2,3,5,6,10,20,30,50,100,150N.m
Category: Static Reaction Torque Sensor
Suitable for the measurement and control of static and discontinuous rotation torque.
| Model: | NF602B |
| Category： | Torque Sensor |
| Capacity: | 0.1,0.2,0.5,1,2,3,5,10N.m |
| Rated Output: | 1.5±10%mV/V |
| Material: | aluminum alloy |
| Protection Class: | IP65 |
| Weight: | 0.2KG |
Product description:
Capacity ：0-0.5-150N.m
Material: aluminum alloy
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Product description:
Capacity ：1~10~500N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
Small size, light weight and easy for installation.
Application: suitable for static and non-continuous rotation torque force measurement.
It is suitable for static and discontinuous rotation torque measurement.
Material: Aluminum alloy
Exterior: Compact structure Easy to install
Applicable to measure and control of the static, non-continuous rotation torque force value
