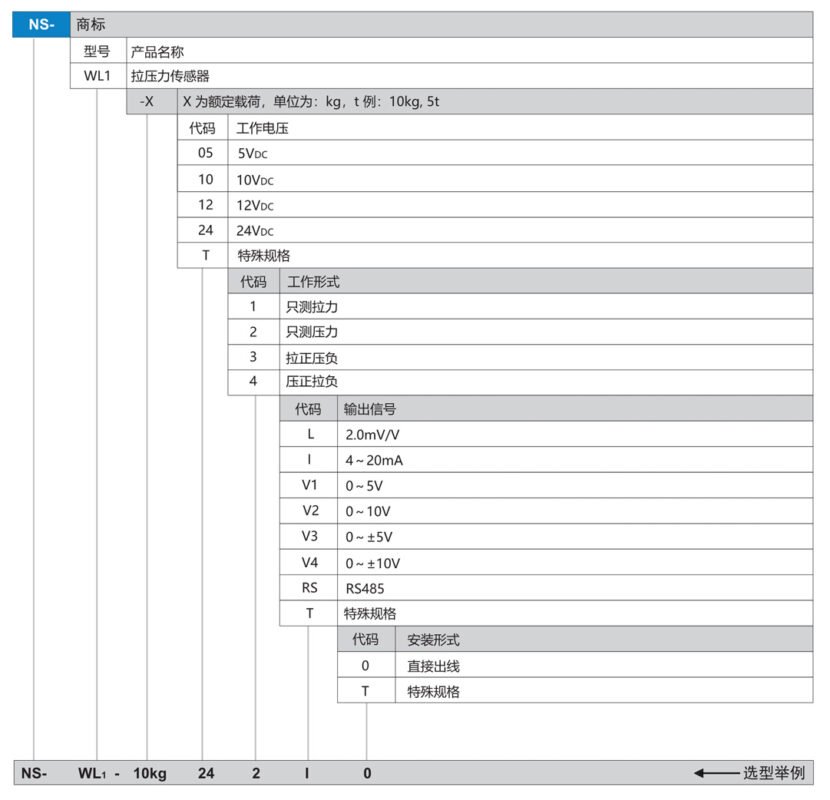

Selection table
High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
Tension Pick-up Load Cell
Capacity: 15~200kg
Category: Tension Sensor
Tension Pick-up Load Cell
Capacity: 20,50,100,150kg
Category: Tension Sensor
High precision, strong anti-overload ability, sealing and moisture-proof. Widely used in various hook scales, ports, wharfs, crane overload protection equipment, etc. This tension type load cell can be used with built-in wireless transceiver.
Product description:
S515 is a square-shaped tension & compression load cell, high-quality silica gel potting is to ensure it can work in harsh environment. Available in a wide range of capacities from 1KN to 10KN
Main Features:
• Material: Alloy steel ( thread)
• Rated Capacity: 1KN~10KN
• Calibrated based on criterion of ISO 376
• IP Rating: IP66
• Suitable for force measurement and overloading safety controlling.
• High precision by ISO 376 class 0.5, 1, 2.
Category: Tension
High precision and stable performance. Suitable for long-term measurement and monitoring of wire rope tension.
With the characteristics of imple structure, high reliability and good interchangeability, the column type tension load cell is suitable for various proportioning scales, hopper scales, hook scales, etc.
Tension Pick-up Load Cell
Capacity: 5,10,20,30,50kg
Category: Tension Sensor
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robot, mold assembly And other industrial test, measurement and systems.
Material: stainless steel
Size: miniature, Large range
Tension Pick-up Load Cell
Capacity: 20,50,100,150kg
Category: Tension Sensor
Tension Pick-up Load Cell
Capacity: 30kg
Category: Tension Sensor
With the function of anti-overload protection. High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
