NS-NJ3 Series Static Torque Transducers

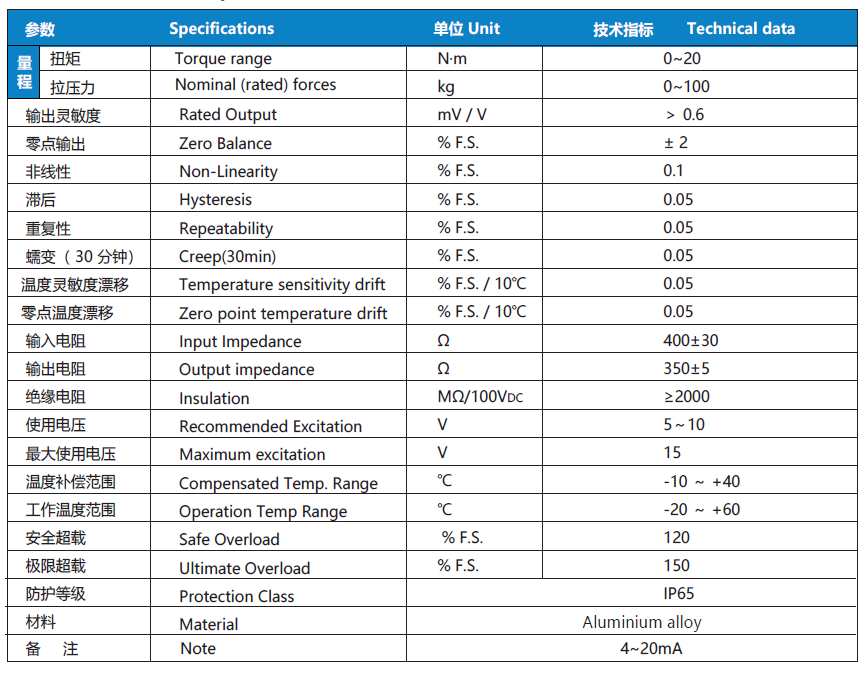

Parameter
Dimensions

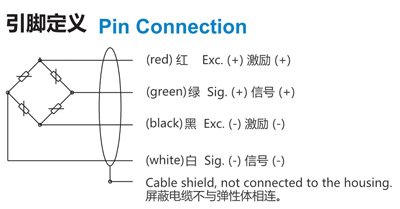

Wiring Definition

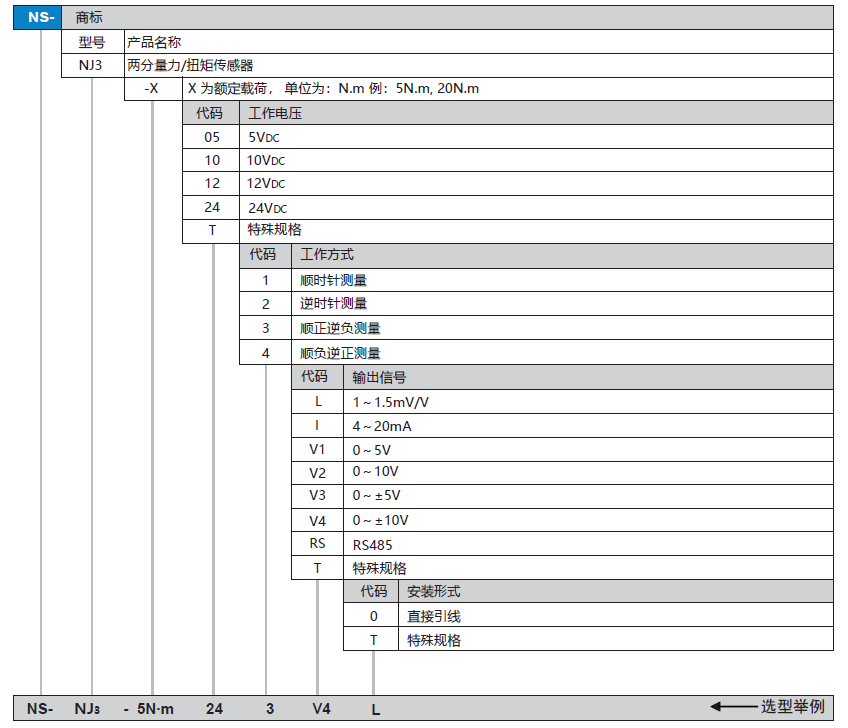

Selection table
Product description:Features:
Capacity ： 0-5~1000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
The TJN-5 static torque measurement sensor is suitable for the measurement and control of static and discontinuous rotation torque.
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: stainless steel Aluminum alloy
Features: High precision Strong anti-eccentricity Customizable
It is suitable for static and discontinuous rotation torque measurement.
Material: Aluminum alloy
Exterior: Compact structure Easy to install
- Range: 0~5000N m
- Output: 1mv/V, 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.1%F.S
Static Torque Sensor
D 38mm*H 31.8mm
Capacity: 0.1,0.2,0.5,1,2,3, 5,10N.m
Category: Static Reaction Torque Sensor
Product description:
Capacity ：1~10000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Product description:
Capacity ：1~10~500N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
Small size, light weight and easy for installation.
Application: suitable for static and non-continuous rotation torque force measurement.
Suitable for the measurement and control of static and discontinuous rotation torque.
With the characteristics of double flange connection, the TJN-3 static torque measurement sensor is easy to install. Suitable for the measurement and control of static and discontinuous rotation torque.
