Thin sensor small size load cell NF107B
Features

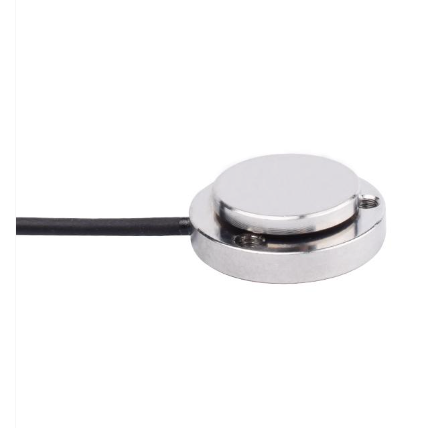

Thin sensor small size load cell NF107B has Minimal dimensions.The small size force sensor allow force measurements almost anywhere,especially in tight and limited spaces. The mini load cell offers load buttons in four capacity options that measure compressive loads from100 to 500N.
- Miniature and thin size
- Stainless steel
- Compact structure
Applications
- Automobile press assembly
- Automatic assembly
- 3C product testing
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 100,200,300,500N |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.3%F.S. |
| Repeatability | 0.2%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | —10~60℃ |
| Operation temp range | —20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ2×3000mm |
| Materia | Stainless Steel |
