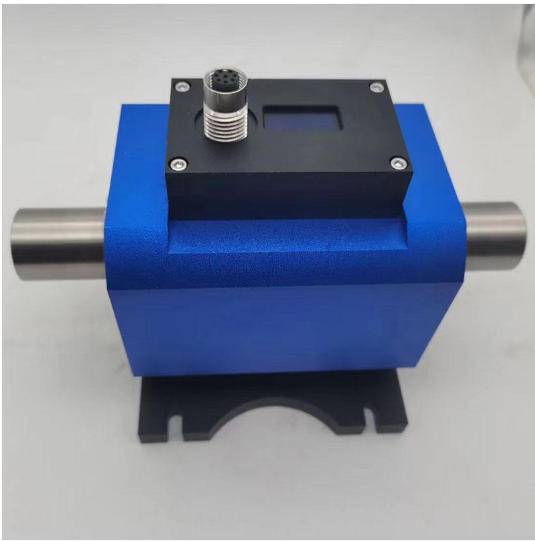

Non-contact dynamic torque sensor NF612
Features
Non-contact dynamic torque sensor NF612 using non-contact rotary transformer technology can measure torque and speed at the same time. There is no friction between the shaft and the signal acquisition device so the rotational sensor is more durable. The non-contact torque load cell measures torque at 5-5000NM and can reach a top speed of 8000rpm.
- Compact structure
- High speed
- Stainless steel shaft
Applications
- Torque measurement of engines
- Screw locking torque monitoring
- Agitator torque control

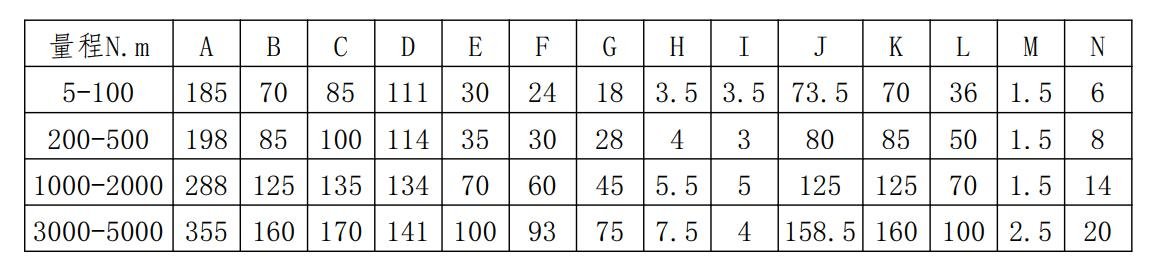

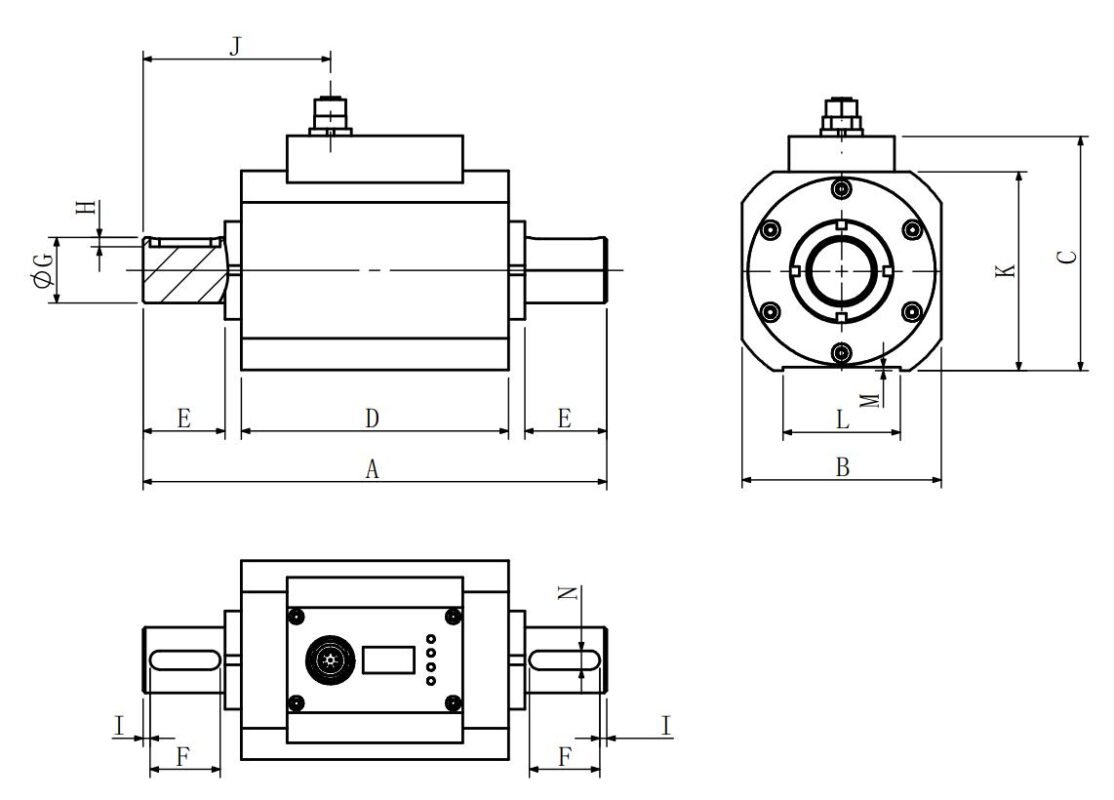

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 5-5000Nm |
| Output signal | 5~15 KHZ / 4~20 mA / 0~5V / 0~10V |
| Speed range | 0~8000 RPM |
| Zero balance | ±2%mV/V |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.2%F.S. |
| Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | ±15V(Output frequency signal);24VDC(Voltage, current signal) |
| Operation temp range | -20~60℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | 3m |
| IP Class | IP66 |
