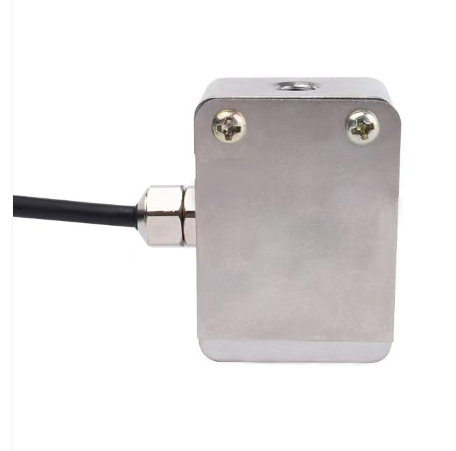

5,10,20,50,100,200KG S shaped load cell NF306
Features
5,10,20,50,100,200KG S shaped load cell NF306 with high accuracy is designed for tension and compression force measurement application. The S-beam force sensor offers 0-5KG, 0-10KG, 0-20KG, 0-50KG, 0-100KG, 0-200KG six different measuring ranges to choose from. So the S type force sensor can be used in a variety of applications.
- Small deformation
- High dynamic response frequency
- Tension and compression bidirectional
Applications
- 3C product key force test
- Switch key test
- Medical detection
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 5,10,20,50,100,200KG |
| Rated output | 2.0±10%mV/V |
| Zero balance | ± 0.05mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.025%F.S./10℃ |
| Temp.effect on zero | 0.025%F.S./10℃ |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | —10~60℃ |
| Operation temp range | —20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ3×3000mm |
