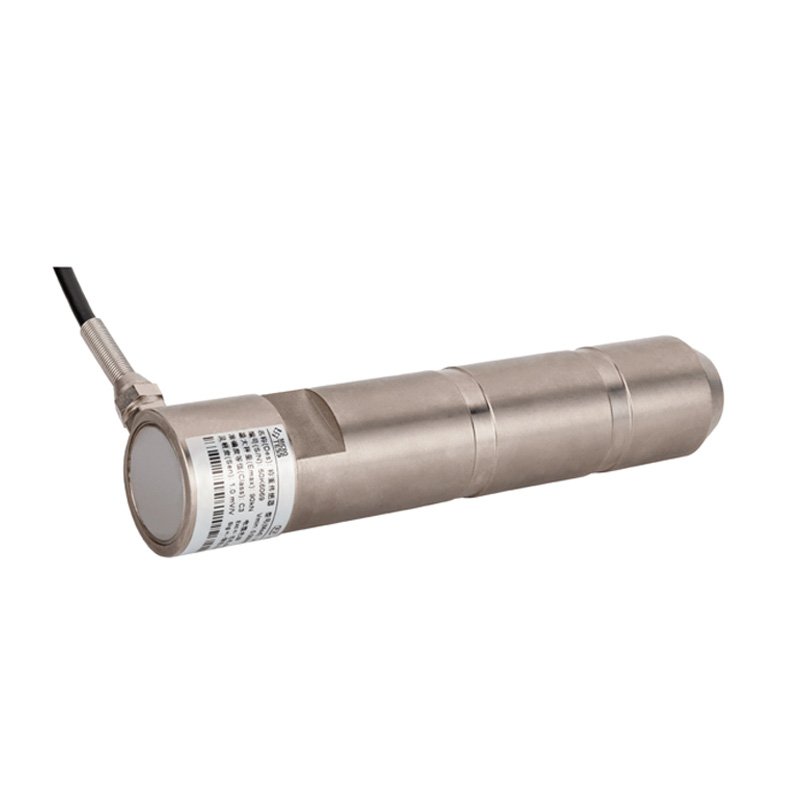

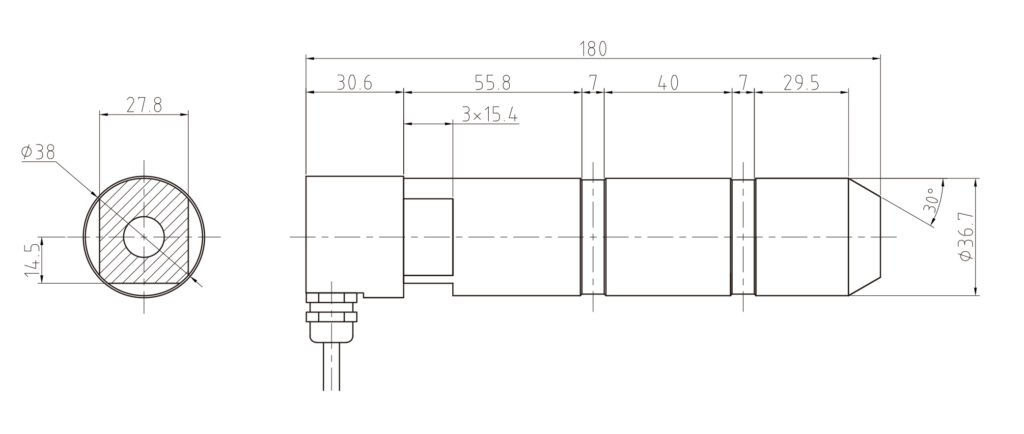

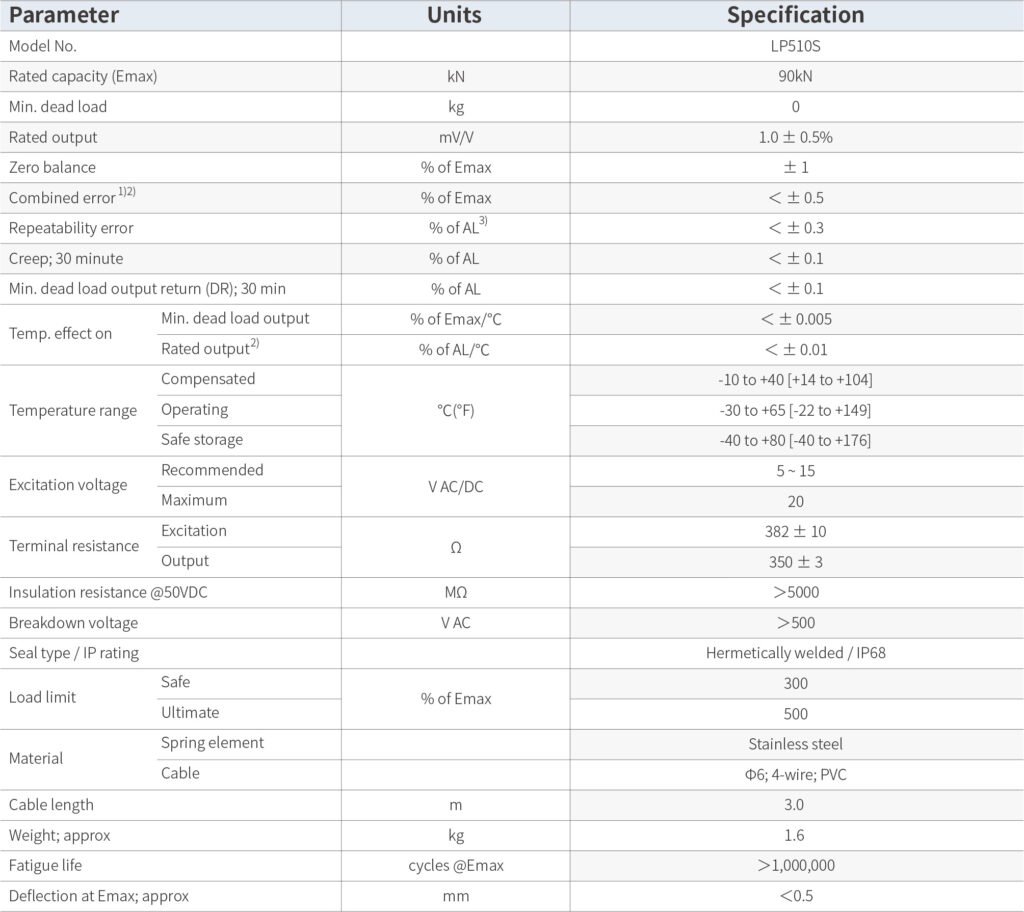

MICRO TESS / LP510S / PIN 로드셀

용량：25, 40, 50, 75, 100klb

재질 : Alloy steel

타입 : Double-Ended Shear Beam

보호등급 : IP68

Capacity: 300 kg–2 t
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for heavy-duty platform scales with a single load cell structure.

Features

용량：500, 1000,2000kg
재질 : Alloy steel, stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67, IP68

용량：10, 25, 40, 50, 75, 100, 200klb

재질 : Alloy steel

타입 : Double-Ended Shear Beam

보호등급 : IP68

Capacity: 100–750 kg
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for platform scales with single or dual load cell structures.

Features

용량：50, 100, 250kg, 0.5, 1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel，stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67/IP68

용량：50, 100, 200, 300, 500, 1000kg, 2, 3, 5t

재질 : Alloy steel (Metric thread)

타입 : S-Beam

보호등급 : IP66/lP68

Features

용량：10, 30, 50kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP67

용량：50, 75, 100klb

재질 : Alloy steel

타입 : Double-Ended Shear Beam

보호등급 : IP68

용량：10, 25, 30, 50, 75, 100, 150, 250klb

재질 : Alloy steel

타입 : Double-Ended Shear Beam

보호등급 : IP68

용량：0.5, 1, 2, 3, 5t

재질 : high quality stainless steel

타입 : Single-Ended Beam

보호등급 : IP68
