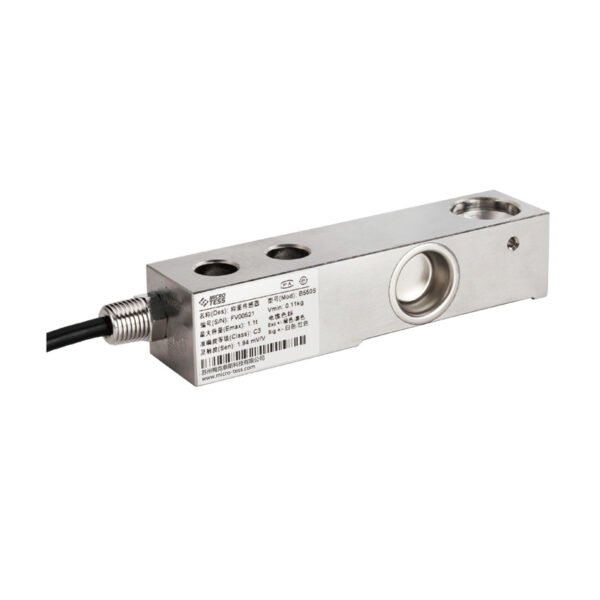

MICRO TESS / B550S/B750S / Single-Ended Beam 로드셀


용량:0.5, 1, 2, 3, 5t

재질 : high quality stainless steel

타입 : Single-Ended Beam

보호등급 : IP68


Share it:

Models

B550S-0.5t, B550S-1t, B550S-2t, B550S-3t, B550S-5t
B750S-0.5t, B750S-1t, B750S-2t, B750S-3t, B750S-5t



Features

  • 용량:0.5~5t
  • 재질 : high-quality stainless steel
  • 타입 : Single-Ended Beam
  • 보호등급 : lP68
  • 화학, 식품, 제약 및 기타 산업 분야의 플랫폼 스케일, 투여 시스템 및 공정 제어에 적합

Dimensions



Capacity L L1 L2 L3 L4 L5 W H H1 H2 H3 D D1 D2 D3
0.5t~2t 133.4 16.4 25.4 76.2 57.7 6.4 30.7 30.2 17.3 4.8 0.38 13.0 22.2 15.9 3.1
3t 136.6 16.6 25.4 76.2 57.7 36.8 36.6 22.9 9.5 13.0 22.2 15.9 3.1
5t 171.5 16.7 38.1 95.2 73.8 42.9 42.9 29.4 11.0 19.5 34.9 22.2 3.1

Specifications
