MLC928E bathroom scale load cell 50kg

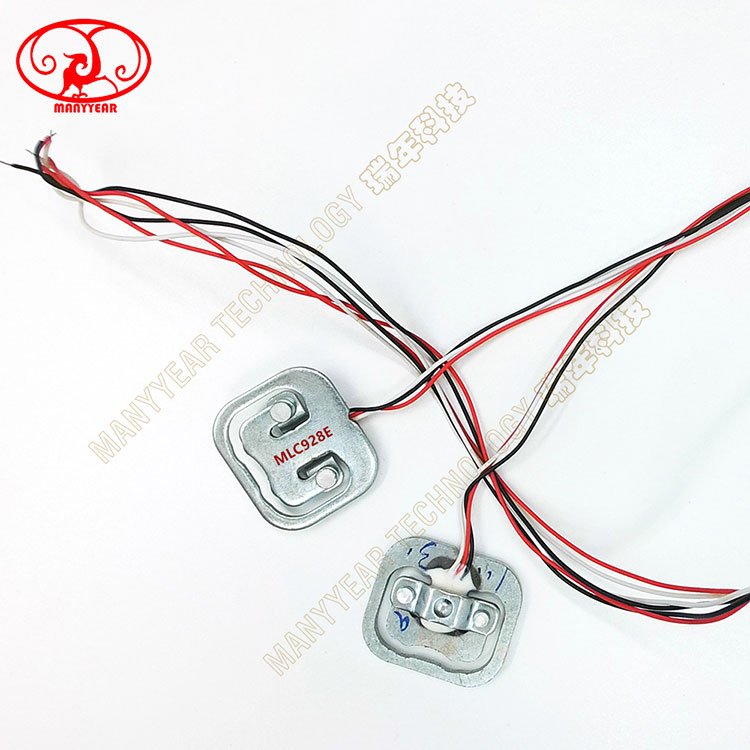

Product Picture Reference
Technology Specification
Below spec is only for customer design reference, we can provide ODM product.
MLC928E bathroom scale load cell
| Model: MLC928E Catalog: Micro load cell Rated load: 50kg Dimension: 28×24×6mm Material: Alloy steel Safe overload: 150%; Ultimate overload: 200% Characteristic: body scale load cell, health scale load cell, bathroom scale load cell, body fat scale load cell, pet scale load cell |
|||
| Item | Value | Item | Value |
|---|---|---|---|
| Comprehensive error | 0.3%FS | Output resistance | 1000±10Ω |
| Rated output | 1.0±0.15mV/V | Insulation resistance | ≥2000MΩ (100VDC) |
| Non-linearity | 0.2%FS | Excitation voltage | 5–10VDC |
| Hysteresis | 0.2%FS | Compensated temp | -10 ~ +40°C |
| Repeatability | 0.1%FS | Use temperature | -20 ~ +55°C |
| Creep | 0.1%FS/10min | Temp effect on zero | 0.3%FS/10°C |
| Zero balance | 1±0.1%FS | Temp effect on span | 0.3%FS/10°C |
| Input resistance | 1000±10Ω | Protection grade | IP66 |
Product Dimension
Force Structure & Assembly Reference
