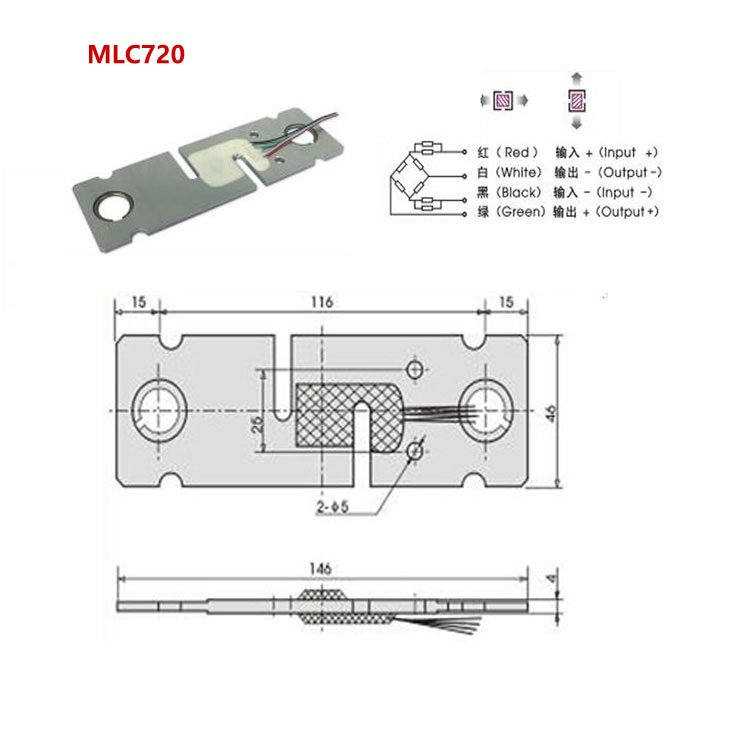

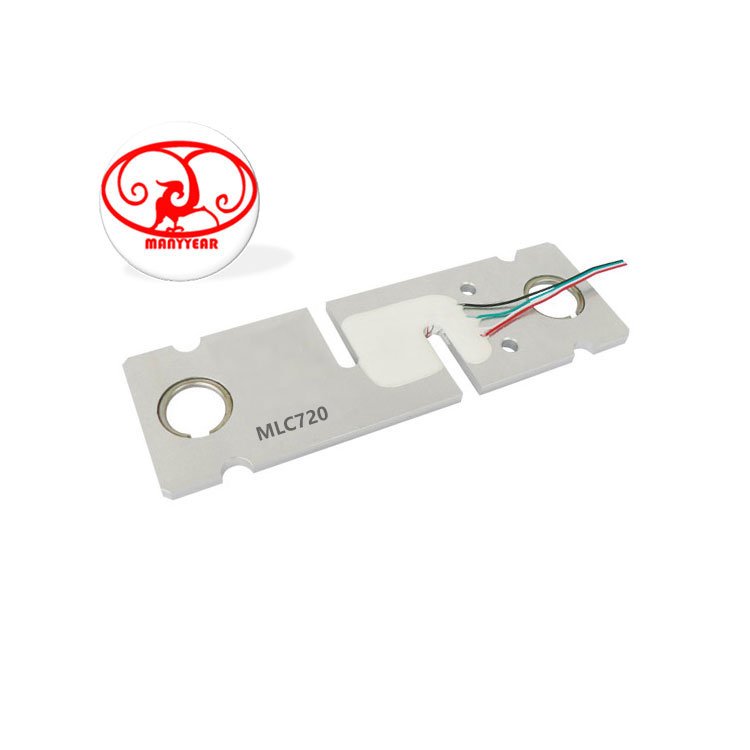

MANYYEAR / MLC720- tension force sensor load cell

The ZMQS is double ended shear beam load cell, capacity from 1t up to 30t. The load cell has high accuracy and high stability, widely used in elevator industry.

Features:

Nickel plated alloy steel

LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAA-ADA-A current is 3kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy of aviation standard.
LAA-ADA-A load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.

The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Compact size

ZMMA-CS is miniature type force sensor for both of compression and tension usage.

Features:

Both compression and tension

The ZMHB double-ended mounting provides good restraint to possible movement of the tanks and, in many cases, eliminates the needs for check rods. The shear beam design gives excellent performance for high capacity loading. The ZMHB is constructed of alloy steel and is potted to IP67 providing excellentt protection against moisture and humidity.

Nickel plated alloy steel

Stainless steel construction

Stainless steel construction

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAK-B load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAK-B load cells can be used to measure loads range from 0.3kg to 3kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAK-B load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.

Nickel plated alloy steel

ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.

Features:

Both compression and tension

The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.

Stainless steel
