MLC672 single point aluminium alloy weight sensor

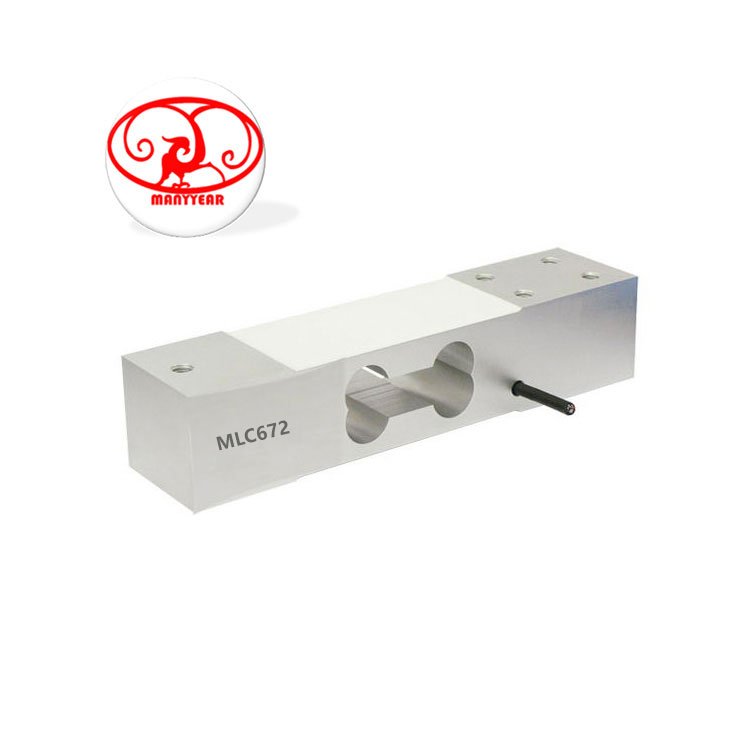

Product Picture Reference
MLC672 single point aluminium alloy weight sensor
Technology Specification
Below spec is only for customer design reference, we can provide ODM product.
Model: MLC672
Category: Single point load cell
Range: 200kg, 300kg
Dimension: 130*50*45mm
Material: alloy aluminum
Characteristic: platform scale load cell, pricing scale load cell, electronic scale load cell, aluminium alloy weight sensor
Specification
| Comprehensive error: | 0.02%FS | Output resistance: | 350±3Ω |
| Rated output: | 2±0.01mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Non-linearity: | 0.02%FS | Excitation voltage: | 9~12VDC |
| Hysteresis: | 0.02%FS | Compensated temp: | -10~+40ºC |
| Repeatability: | 0.01%FS | Use temperature: | -20~+60ºC |
| Creep: | 0.02%FS/10Min | Temp effect on zero: | 0.02%FS/10ºC |
| Zero balance: | ±2%FS | Temp effect on span: | 0.02%FS/10ºC |
| Input resistance: | 405±10Ω | Defend grade: | IP65 |
Product Dimension
Force Structure & Assembly Reference
