MLC642 500kg packing scale weighing sensor

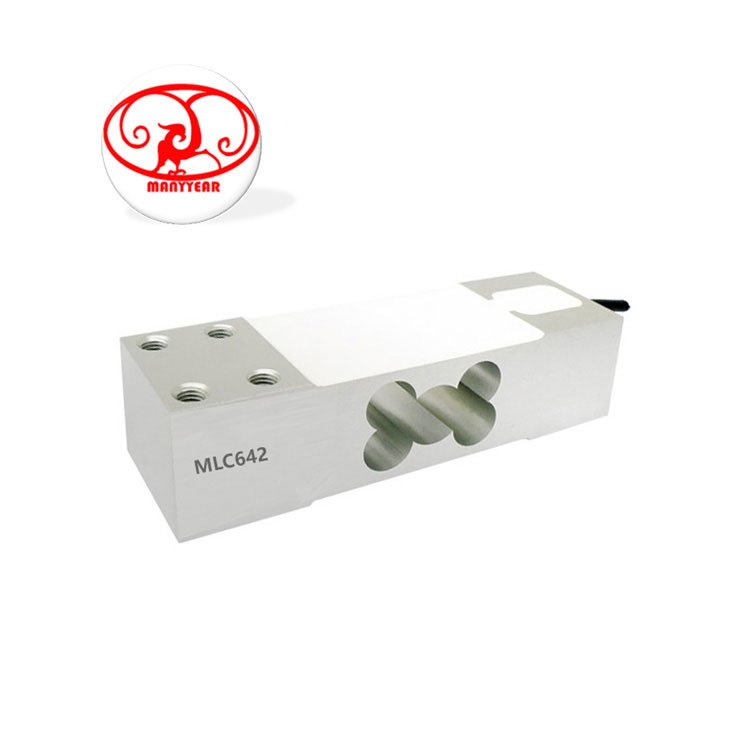

Product Picture Reference
MLC642 500kg packing scale weighing sensor
Technology Specification
Below spec is only for customer design reference, we can provide ODM product.
MLC642 500kg packing scale weighing sensor
Model: MLC642
Category: Single point load cell
Range: 100kg, 150kg, 200kg, 300kg, 350kg, 500kg
Dimension: 150*40*40mm
Material: alloy aluminum
Characteristic: platform scale weighing sensor, packing scale weighing sensor, batching scale weighing sensor, checkweigher weight sensor
Specification
Comprehensive error: 0.02%FS
Rated output: 2±0.01mV/V
Non-linearity: 0.02%FS
Hysteresis: 0.02%FS
Repeatability: 0.02%FS
Creep: 0.027%FS/10Min
Zero balance: ±1%FS
Input resistance: 405±10Ω
Output resistance: 350±3Ω
Insulation resistance: ≥5000MΩ(100VDC)
Excitation voltage: 9~12VDC
Compensated temp: -10~+40ºC
Use temperature: -20~+60ºC
Temp effect on zero: 0.03%FS/10ºC
Temp effect on span: 0.02%FS/10ºC
Defend grade: IP65
Product Dimension
Force Structure & Assembly Reference
