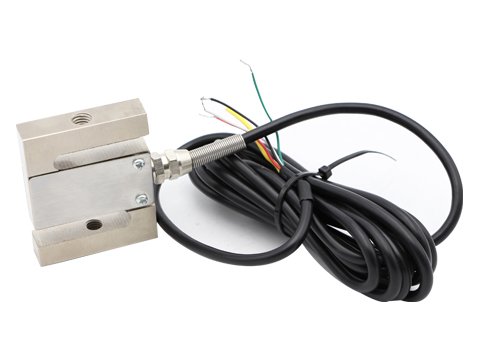

Model: LAS-AX1
Capacity: 10,20,30,50,100 (KG)
Usage: Mainly used for price computing scales,counting scales, packing machinerys etc.
Dimension: 50.8*50.8*18MM
Features
- S-type load cells
- capacity:10kg,…,100kg
- accuracy:0.05% R.O.
- aluminum construction with surface anodized
- environment protection class:IP65
Applications
- crane scales
- hopper scales
- tensile testing
- test benches
- machine testing
Dimension
Electrical Connection
Technical Data
| Rated Capacity | 10, 20, 30, 50, 100 (kg) |
| Accuracy Class | S |
| Rated Output | 2.0 ± 10%mV/V |
| Zero Balance | ±5%R.O. |
| Input Resistance | 1130±20Ω |
| Output Resistance | 1000±10Ω |
| Linearlty Error | ±0.05%R.O. |
| Repeatability Error | ±0.05%R.O. |
| Hysteresis Error | ±0.05%R.O. |
| Creep in 30 Min. | ±0.05%R.O. |
| Temp.Effect on Output | ±0.05%R.O./10℃ |
| Temp.Effect on Zero | ±2%R.O./10℃ |
| Compensated Temp.Range | 0－+40℃ |
| Excitation,Recommended | 3－5VDC |
| Excitation,Maximum | 6VDC |
| Operating Temp.Range | -10－+40℃ |
| Safe Overload | 150%R.C. |
| Ultimate Overload | 200%R.C. |
| Insulation Resistance | ≥2000MΩ(50VDC) |
| Cable,Length | ø0.8mm× 0.1m * |
| Protection Class | IP65 |
