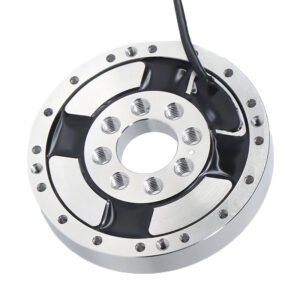

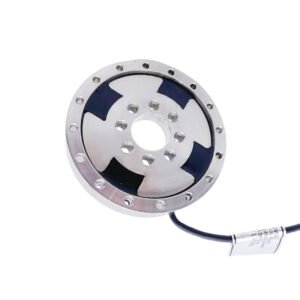

KWR61N30 Static 61mm 30Nm RS485 Torque Sensor for Robot Joint
Description
In the design process of KWR61N30 torque sensor, in order to further study the torque sensor, we first conducted mechanical analysis on the sensor to accurately determine the adhesive position of the strain gauge; Next, analyze the deformation of the strain gauges in detail; Subsequently, finite element analysis software was used to optimize the material selection and body structure of the torque sensor. Finally, the sensor is statically calibrated using a calibration device to obtain key performance indicators such as sensitivity, linearity, and hysteresis. The research results indicate that material selection has a significant impact on the performance of torque sensors. The use of high-strength alloy steel materials can effectively improve the accuracy and reliability of sensors.
High strength alloy steel materials not only have high elastic modulus, but also excellent fatigue resistance, which can effectively cope with long-term working stress and alternating loads. In addition, the material has a stable temperature coefficient of resistance and a low coefficient of thermal expansion, significantly reducing the interference of temperature changes on measurement results. High strength alloy steel materials usually have both high elastic modulus and low creep characteristics, which can maintain small deformations even under continuous stress, effectively reducing measurement errors and greatly improving the accuracy and reliability of sensors. Torque sensors need to maintain stable performance during long-term operation. High strength materials, with their excellent fatigue resistance and corrosion resistance, can resist the influence of environmental factors such as temperature changes, humidity, chemical corrosion, etc. In practical applications, torque sensors may encounter instantaneous overload or impact loads. High strength materials can withstand higher stress peaks, avoiding permanent deformation or damage caused by overload, thereby extending the service life of sensors. In special application scenarios such as high temperature, high pressure, strong vibration, etc., torque sensors need to have stronger environmental adaptability. High strength materials usually have better thermal and mechanical stability, which can maintain stable performance under harsh working conditions and meet the needs of complex applications.
Model of KWR61N30
