KUNWEI / CP-L-102 / CP-L серия тензодатчиков с параллельной балочной конструкцией, 5 кг – 750 кг, для платформенных или торговых весов

Parallel beam sensors mainly consist of an elastic body, strain gauges, and measurement circuits. The elastic body of parallel beam sensors uses a dual parallel beam structure, typically made from aluminum alloy or stainless steel. When the elastic body deforms under external force, the strain gauges attached to its surface also deform, causing changes in their resistance values. These changes in resistance values are converted into electrical signals through the measurement circuit and then transformed into readable weighing values via an analog-to-digital converter (ADC module). Parallel beam sensors, known for their simple structure, high precision, wide measurement range, and good stability, have become one of the most commonly used types of load sensors in industrial fields, especially suitable for high-precision measurement scenarios.
Our company’s CP series parallel beam load cells are high-performance single-point load cells with a measurement range of 3 kg to 750 kg, available in multiple size specifications. The product has obtained the China Measuring Instruments Type Approval Certificate (CPA) and achieves precision levels of C5/C6, with repeatability error ≤ ±0.01 F.S., meeting customers’ precision requirements across different weighing ranges. The operating temperature of the product is -30°C to +65°C, with an IP67 protection rating. It features automatic corner adjustment, compact design, and temperature compensation, significantly enhancing its accuracy and stability when used in industrial environments. Due to its excellent performance, the CP series load cells are widely used in various industrial and retail weighing applications such as electronic price scales, packaging scales, and process weighing control systems.

Add to Wishlist
Share it:

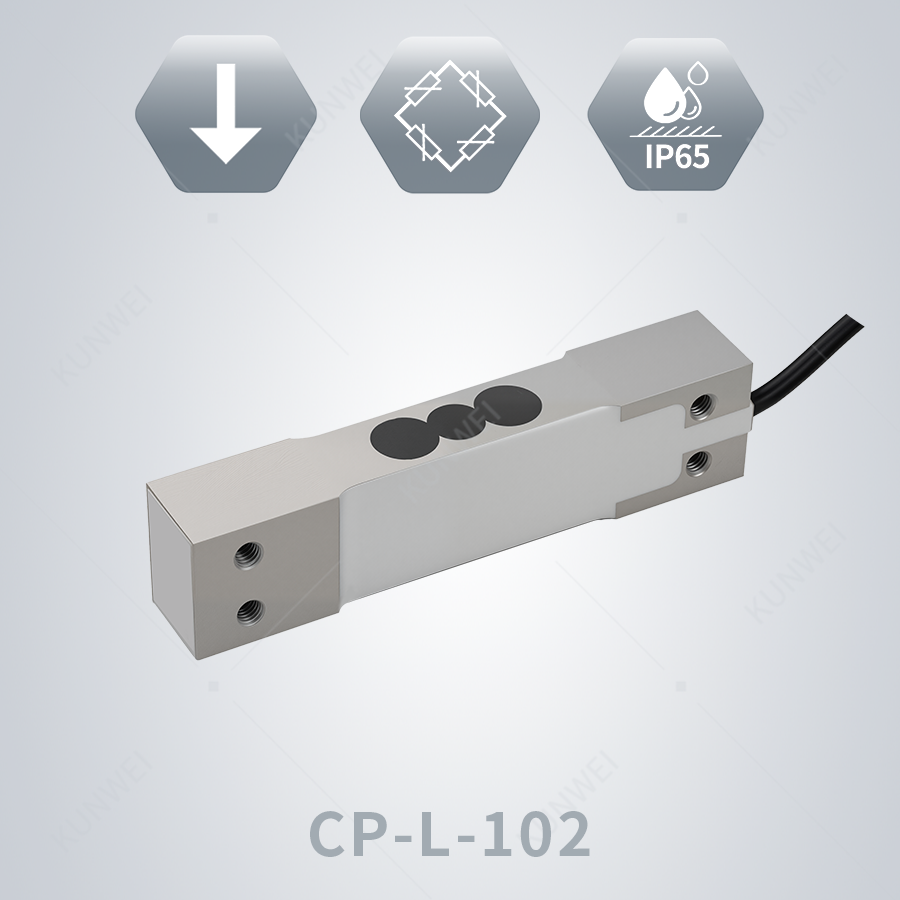

CP-L-102 CP-L Series Parallel Beam Structure Load Cells 5kg to 750kg for Platform Scales or Pricing Scales

1. Application scenarios: Such as installation on platform scales and pricing scales;

2. Usage environment: Whether direct rinsing or using a damp cloth is required;

3. Determine the size of the countertop;

4. Determine the measurement range.

Description

The CP-L series and the CP series adopt the same manufacturing process, such as both using aluminum alloy elastomers and the same strain gauge bonding process. For more information about the manufacturing process, you can visit the introduction of the CP series sensors. The CP series is mainly targeted at mid-to-high-end customer groups, offering a higher accuracy grade, which can reach C6 level. The CP-L series optimizes the production process to ensure that the sensor achieves C3 accuracy grade while maximizing cost performance as much as possible. It can be said that if you are in pursuit of the ultimate cost performance, you can choose the CP-L series. If you are seeking more accurate weighing data, then you can choose the CP series.

More Details

Digital Cantilever Beam Sensors Load Cells from 220kg to 4400kg for Mixing Tanks
CP-L Series Parallel Beam Structure Load Cells 5kg to 750kg for Platform Scales or Pricing Scales



Model of CP-L Series

Application
