MBIFR series small-range shear type

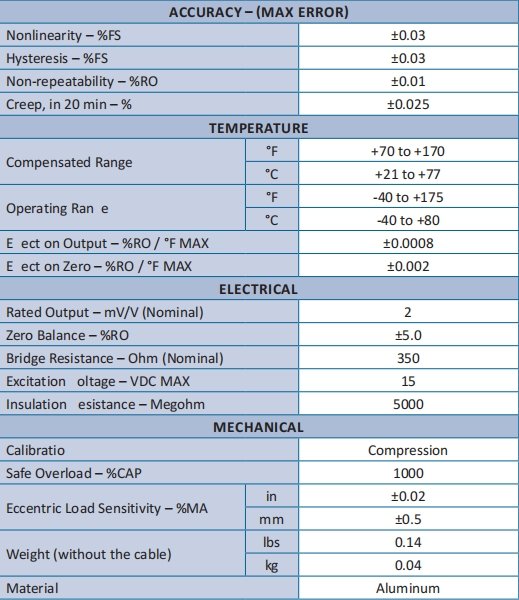

Technical parameters

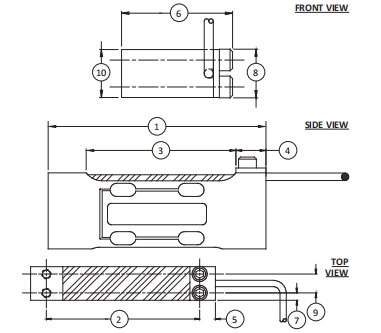

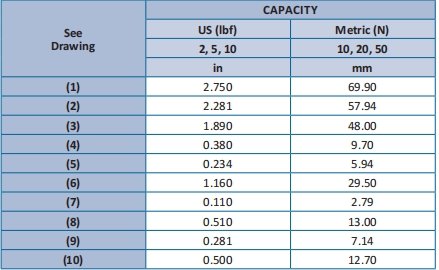

Dimensions
The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 0.5kg-200kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.
Features:
Capacity 5N,10N,20N,50N,100N,200N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
It is Also known as shear beam weighing sensor, its shape is mostly rectangular, and the strain zone is located in the middle of the sensor. The cantilever beam weighing sensor has the characteristics of simple structure, easy installation, reliable use, long service life, and high cost-effectiveness.
Cantilever beam weighing sensors are used in highway scales such as automobile scales, main axle load gauges, small weighing scales, and flat scales in industrial scales Platform scales, steel cylinder scales, and other fields have been widely used, generally using three or four sensors as a group.
The ZM3DW 3 axis load cell utilizes independent wheatstone full bridge for Fx, Fy, Fz which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Cusotmaztion can consist of load cells with client’s outer dimension, mouting size, output signal etc. Used with Zhimin’s data logger which can collect load cell’s voltage signal and display force curve.
Features:
Capacity 50N-500kN
3 axis-Fx Fy Fz independent bridges
Low crosstalk
Compact size
Optional features:
0-5V output signal
The ZMHB double-ended mounting provides good restraint to possible movement of the tanks and, in many cases, eliminates the needs for check rods. The shear beam design gives excellent performance for high capacity loading. The ZMHB is constructed of alloy steel and is potted to IP67 providing excellentt protection against moisture and humidity.
Features:
Capacity 1Klb-50Klb
High accuracy
High stability
Nickel plated alloy steel
Optional features:
Stainless steel construction
The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Features:
F from 20N to 2000N
M from 1N.m to 50N.m
Low crosstalk
Compact size
Optional features:
0-5V output signal
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAK-B load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAK-B load cells can be used to measure loads range from 0.3kg to 3kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAK-B load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.
The ZMMC2 brake pedal force sensor is designed to measure load applied to the brake, accelerator or clutch pedal. Zhimin’s brake pedal load cells are manufactured to be of excellent quality, so that your application will be reliable, durable, accurate and precise.
Features：
Capacity 500-2000N
High accuracy
Low profile
Nickel plated alloy steel
Optional features：
Optional output(4-20mA,0-5V)
The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 1kg-100kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
ZMMA-CS is miniature type force sensor for both of compression and tension usage.
Features:
Capacity 2N,3N,5N,10N,20N,30N,50N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
Weighbridge load cells also known as truck scales are designed for truck and rail scales. The ZMHBQ is common product widely used around the world. The ZMHBQ is very cost-effective with C3 class. In most of situations, they are used at 4,6 or 8 numbers together, so their sensitivity must be exact same.
Features:
Capacity 10t-50t
High accuracy
Cost-effective
Nickel plated alloy steel
Optional features:
Hermetically sealed available
ZMMA-CS is miniature type force sensor for both of compression and tension usage.
Features:
Capacity 2N,3N,5N,10N,20N,30N,50N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
