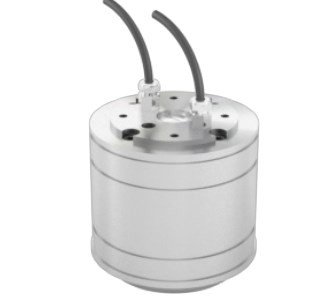

AT103 Tension-Torsion Composite Force Sensor
Technical parameters
| Parameter | Value |
|---|---|
| Accuracy Grade (MAX ERROR) | |
| Non-linearity (Torque) — %FS | +/- 0.2 |
| Hysteresis (Torque) — %FS | +/- 0.2 |
| Repeatability — %RO | +/- 0.08 |
| Creep (within 30 min) — % | +/- 0.1 |
| Temperature | |
| Zero Drift — %RO/°C — MAX | +/- 0.02 |
| Sensitivity Drift — %RO/°C — MAX | +/- 0.02 |
| Compensated Temperature Range — °C | 0 to +100 |
| Operating Temperature Range — °C | -30 to +120 |
| Electrical Characteristics | |
| Rated Output (Sensitivity) — mV/V | 1 +/- 0.5% |
| Excitation Voltage — VDC MAX | 2-12 |
| Output Resistance — Ohm | 350 |
| Connection (Cable Length) — m | 2 |
| Mechanical Characteristics | |
| Safe Overload — %CAP | 150 |
| Protection Class (IP Rating) | 40 |

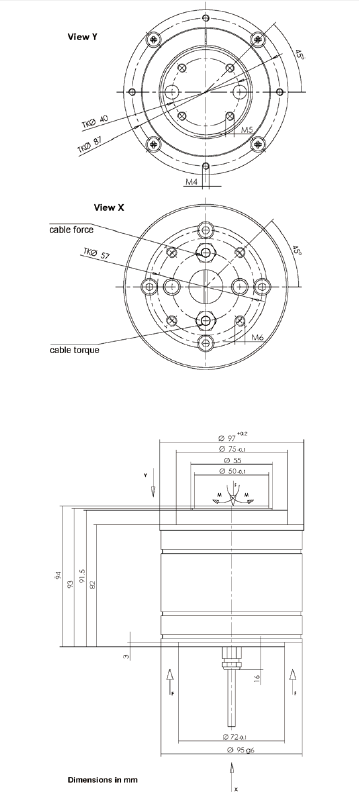

Dimensions
