3200 Series Spoke Wheel (Stainless Steel)

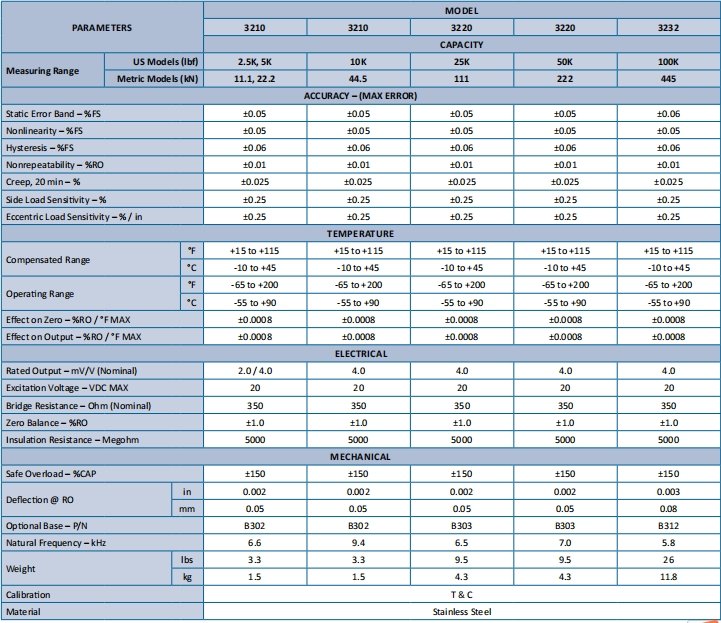

Technical parameters

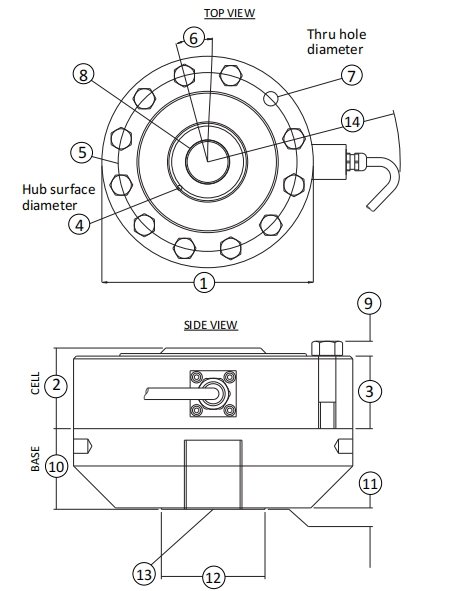

Dimensions
It is Also known as shear beam weighing sensor, its shape is mostly rectangular, and the strain zone is located in the middle of the sensor. The cantilever beam weighing sensor has the characteristics of simple structure, easy installation, reliable use, long service life, and high cost-effectiveness.
Cantilever beam weighing sensors are used in highway scales such as automobile scales, main axle load gauges, small weighing scales, and flat scales in industrial scales Platform scales, steel cylinder scales, and other fields have been widely used, generally using three or four sensors as a group.
The ZM3DW 3 axis load cell utilizes independent wheatstone full bridge for Fx, Fy, Fz which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Cusotmaztion can consist of load cells with client’s outer dimension, mouting size, output signal etc. Used with Zhimin’s data logger which can collect load cell’s voltage signal and display force curve.
Features:
Capacity 50N-500kN
3 axis-Fx Fy Fz independent bridges
Low crosstalk
Compact size
Optional features:
0-5V output signal
ZMMA-CS is miniature type force sensor for both of compression and tension usage.
Features:
Capacity 2N,3N,5N,10N,20N,30N,50N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
The ZMMA1 is miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The low profile, small diameter design enables the ZMMA1 to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.
Features:
Capacity 500N-5000N
Compact size
Easy installation
Stainless steel construction
Optional features:
4-20mA or 0-5V output
The ZMQS is double ended shear beam load cell, capacity from 1t up to 30t. The load cell has high accuracy and high stability, widely used in elevator industry.
Features:
Capacity 1t-30t
High accuracy
High stability
Nickel plated alloy steel
Optional features:
Stainless steel construction
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAA-ADA-A current is 3kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy of aviation standard.
LAA-ADA-A load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
The ZMMC2 brake pedal force sensor is designed to measure load applied to the brake, accelerator or clutch pedal. Zhimin’s brake pedal load cells are manufactured to be of excellent quality, so that your application will be reliable, durable, accurate and precise.
Features：
Capacity 500-2000N
High accuracy
Low profile
Nickel plated alloy steel
Optional features：
Optional output(4-20mA,0-5V)
Weighbridge load cells also known as truck scales are designed for truck and rail scales. The ZMHBQ is common product widely used around the world. The ZMHBQ is very cost-effective with C3 class. In most of situations, they are used at 4,6 or 8 numbers together, so their sensitivity must be exact same.
Features:
Capacity 10t-50t
High accuracy
Cost-effective
Nickel plated alloy steel
Optional features:
Hermetically sealed available
The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Features:
F from 20N to 2000N
M from 1N.m to 50N.m
Low crosstalk
Compact size
Optional features:
0-5V output signal
The ZMMA1 is miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The low profile, small diameter design enables the ZMMA1 to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.
Features:
Capacity 500N-5000N
Compact size
Easy installation
Stainless steel construction
Optional features:
4-20mA or 0-5V output
ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.
Features:
Capacity 5N,10N,20N,50N,100N,200N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
