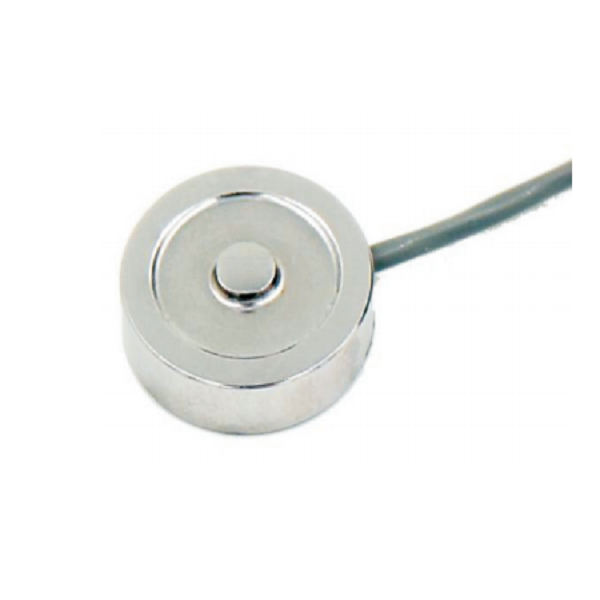

LB13 Column Force Sensors
Technical parameters

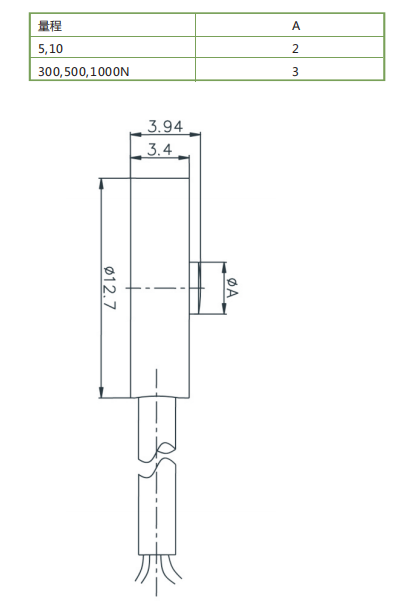

Dimensions
| Model: | NF402 |
| Category： | Column Load Cells |
| Capacity: | 10,20,30,50,500,100,200,300,500N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
With the characteristics of the wide range of measurements, safe and reliability, our column-type tension load cell is suitable for the measurement and control of electronic scales, lifting equipment and various force values.
| Model: | NF411 |
| Category： | Column Load Cells |
| Capacity: | 5,10,20,50,100kN |
| Rated Output: | 1.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP66 |
Product description:◆Capacity ：0~200N ◆ Stainless steel ◆High stability ◆ Can be installed in small spaces ◆ Stable anti-interference signal ◆ Compared with traditional column sensor, this structure achieve relatively high accuracy in terms of linearity, anti- side, torsional resistance, and azimuth error. ◆Widely used in automotive pressing, automatic assembly, 3C product testing, new energy product assembly, medical testing, machines Robot field, mold assembly and other industrial testing,motorizing equipment and testing field
Product description:
Capacity ：0~50kg
Stainless steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Compared with traditional column sensor, this structure achieve relatively high accuracy in terms of linearity, anti- side, torsional resistance, and azimuth error
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robot, mold assembly and other industrial test, measurement and systems.
Material: stainless steel, Aluminum alloy
Size: Overload Protection High precision
| Model: | NF406 |
| Capacity: | 0.1,0.2,0.5,1,2,5,10,20kN |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.3KG |
Model 41 is a low profile “pancake” type load cells. These bonded foil, strain gage load cells are engineered to measure loads from 5 lb to 500,000 lb. The tension/ compression Model 41 is designed with the threaded hole running completely through the center of the cell. Model 41 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills, extruding processes and weighing. Each unit has a welded construction and can be hermetically sealed for added durability. Model 41 load cells are available with optional 0 Vdc to 5 Vdc or 4 mA to 20 mA output.
