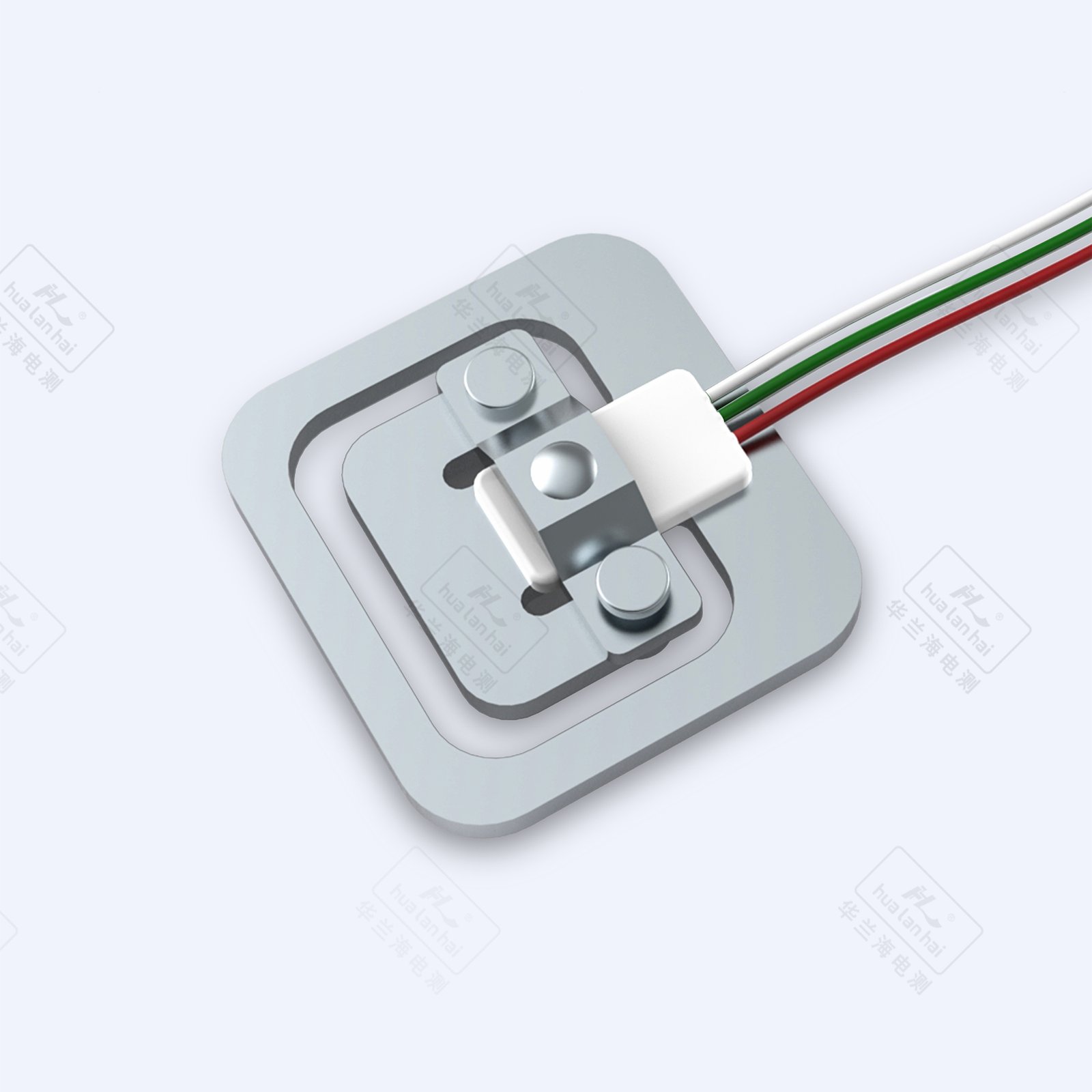

Model: CZL902HB
Use: Весы для человека, почтовые весы, кофемашина, пивной автомат
Structural diagram
parameter
|
Rated load |
40kg |
|
Zero output |
±0.5 mV/V |
|
Output sensitivity |
0.65±15% mV/V |
|
linear |
0.3% FS |
|
lagging |
0.3% FS |
|
Repeatability |
0.2% FS |
|
Creep |
0.05% FS/3min |
|
Output (input) impedance |
1000±5Ω |
|
Service temperature |
0℃ ~ +40 ℃ |
|
Zero temperature effect |
±1.0% FS/10℃ |
|
Sensitivity temperature effect |
±0.1% FS/10℃ |
|
Insulation resistance |
≥2000MΩ |
|
Comprehensive accuracy |
0.3% FS |
|
Excitation voltage |
3VDC ~ 10VDC |
|
Ultimate Overload |
150% FS |
|
Material Science |
Manganese Steel |
|
Protection level |
IP65 |
|
Overall dimension of sensor |
30*28*2 |
