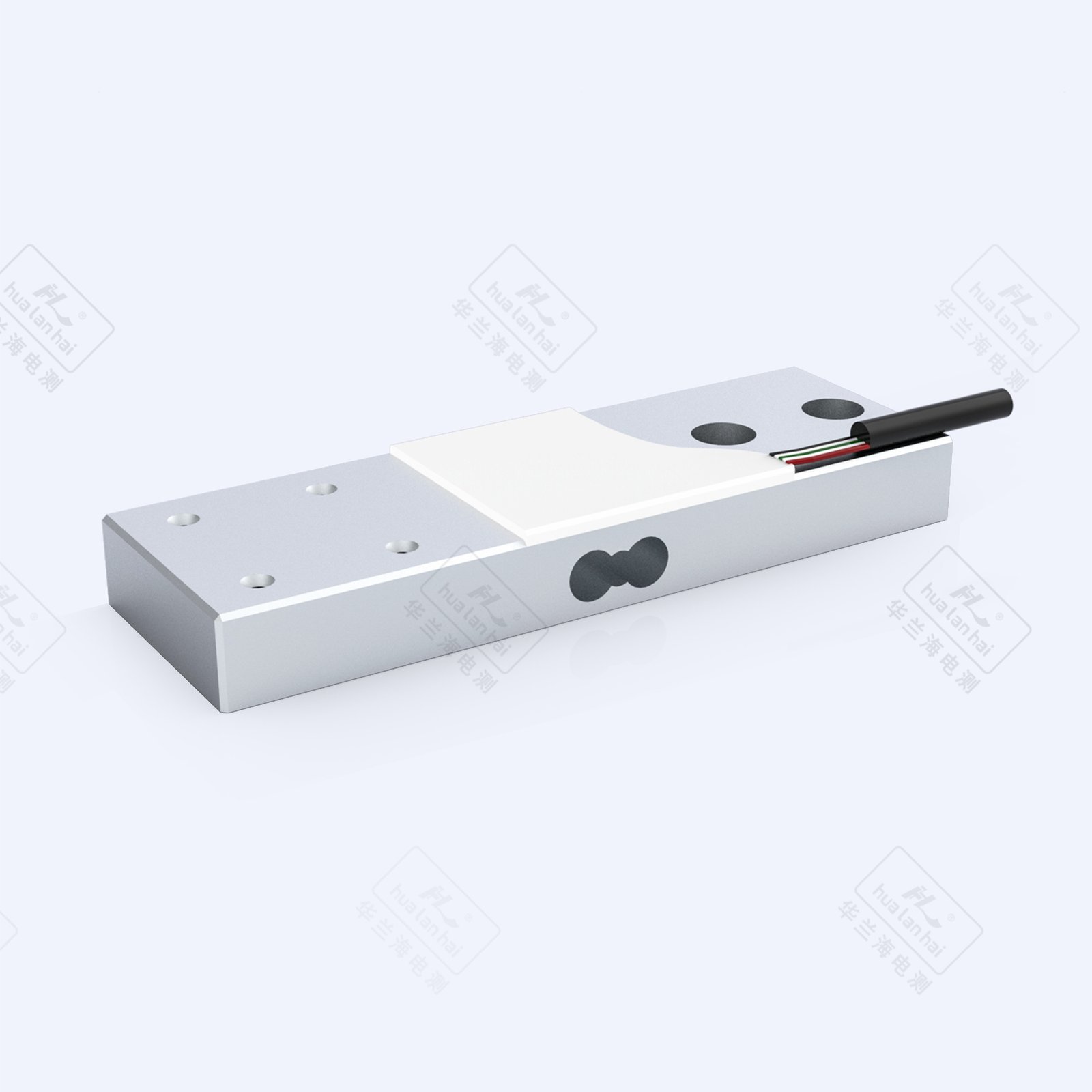

Model: CZL658NA
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
Sensor range | 60kg |
Accuracy class | G1 |
Comprehensive error | ±0.1% FS |
Output sensitivity | 1.5±0.2 mV/V |
creep | ±0.1% FS/3min |
Zero output | ±0.05 mV/V |
Input impedance | 1000±10Ω |
Output impedance | 1000±10Ω |
insulation resistance | ≥2000 MΩ(100VDC) |
Influence of zero temperature | ±0.1% FS/10℃ |
Sensitivity temperature effect | ±0.2% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -20℃ ~ +60 ℃ |
Excitation voltage | 9VDC ~ 12VDC |
Safe overload range | 120% |
Limit overload range | 150% |
Material Science | Aluminum Alloy |
Protection level | IP65 |
External dimension of sensor | 80*26*9 |
Mounting hole size | 4-M3+2-Φ6.5 |
Location of mounting hole | X14 Y16+Y15 |
