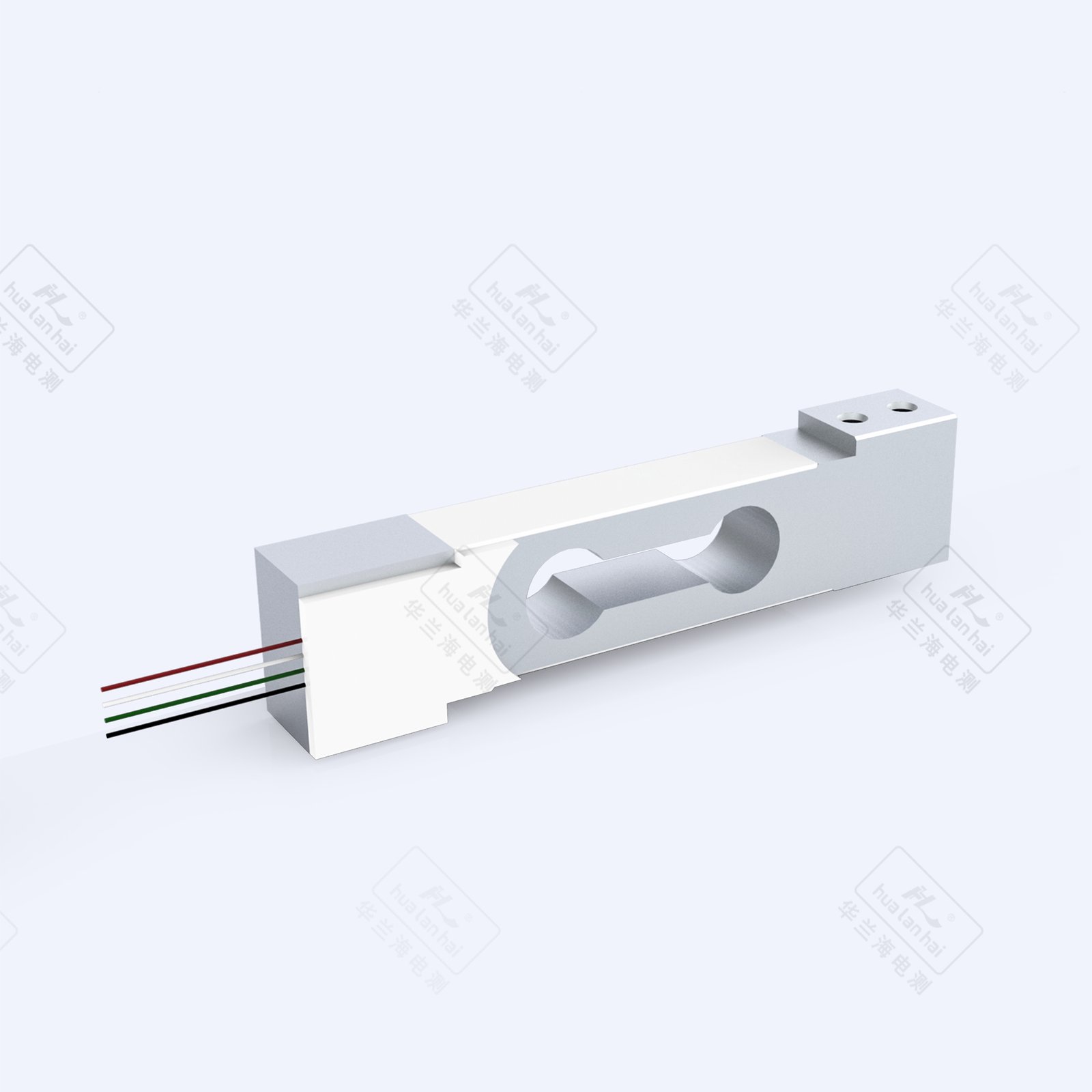

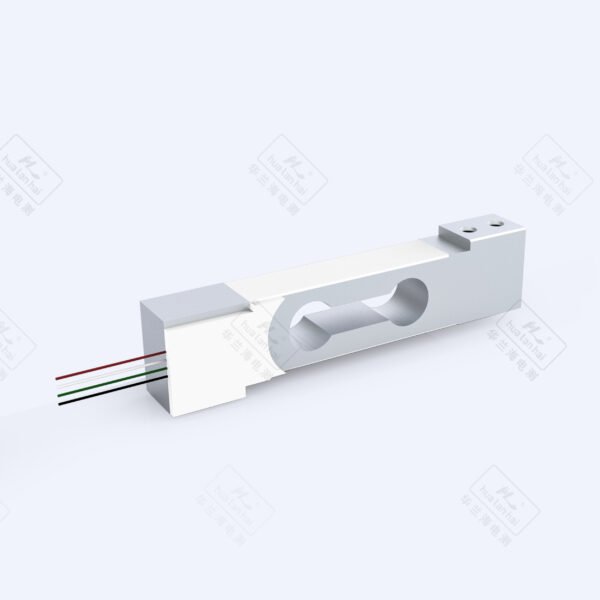

Model: CZL648A
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
Sensor range | 2kg ~ 30kg |
Accuracy class | C2/C3 |
Comprehensive error | ±0.03 & ±0.02% FS |
Output sensitivity | 1.2±0.1 mV/V |
creep | ±0.023 & ±0.016% FS/30min |
Zero output | ±3.0% FS |
Input impedance | 1140±50Ω |
Output impedance | 1000±10Ω |
insulation resistance | ≥5000 MΩ(100VDC) |
Influence of zero temperature | ±0.029 & ±0.019% FS/10℃ |
Sensitivity temperature effect | ±0.025 & ±0.017% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -20℃ ~ +60 ℃ |
Excitation voltage | 9VDC ~ 12VDC |
Safe overload range | 120% |
Limit overload range | 150% |
Recommended table size | 200*200mm |
Material Science | Aluminum Alloy |
Protection level | IP65 |
External dimension of sensor | 112*28*15 |
Mounting hole size | 2-M5 |
Location of mounting hole | X10 |
