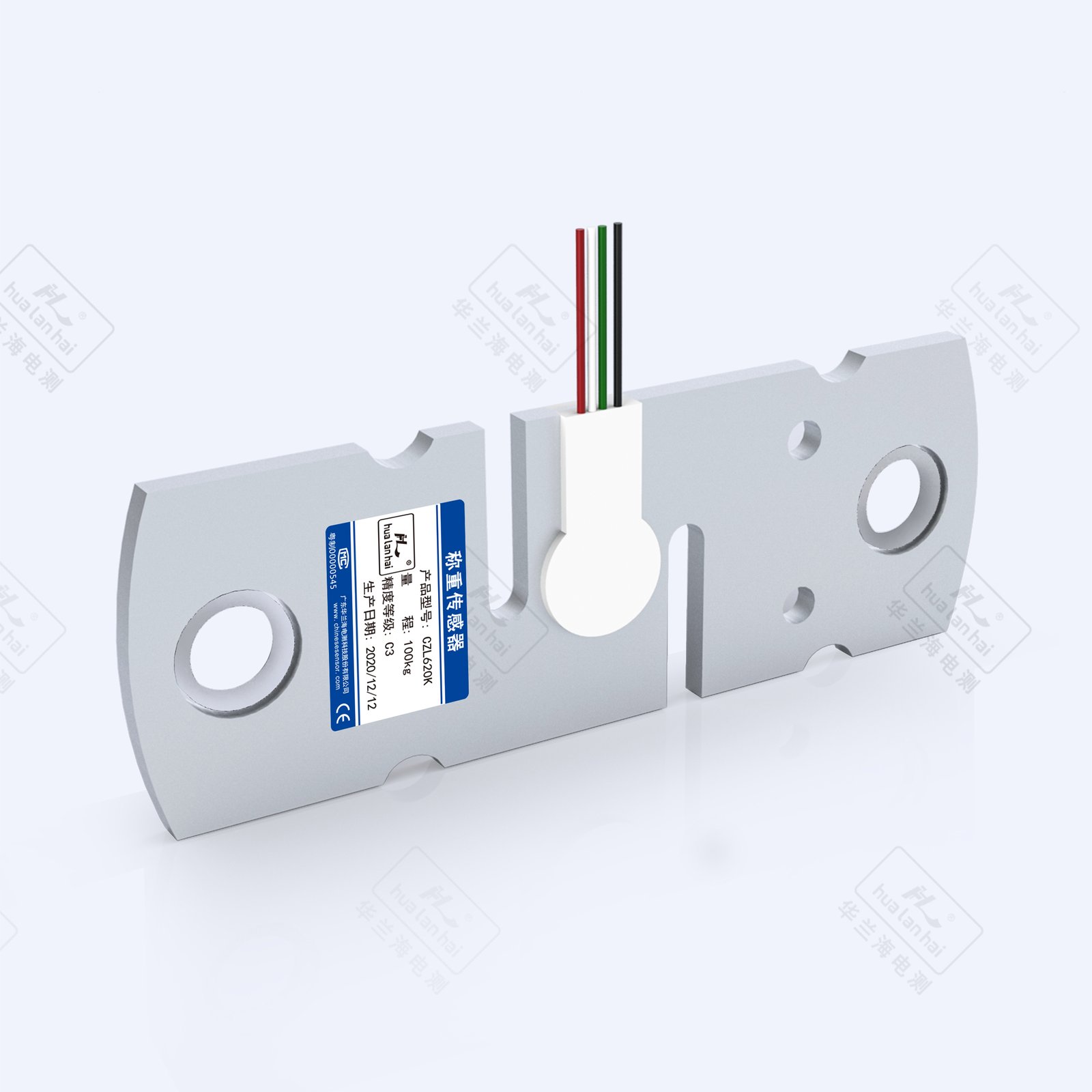

Model: CZL620K
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
|
Sensor range |
150kg ~ 400kg |
|
Accuracy class |
G1 |
|
Comprehensive error |
±0.1% FS |
|
Output sensitivity |
2.2±0.2 mV/V |
|
creep |
±0.1% FS/10min |
|
Zero output |
±3.0% FS |
|
Input impedance |
1000±10Ω |
|
Output impedance |
1000±10Ω |
|
insulation resistance |
≥5000 MΩ(100VDC) |
|
Influence of zero temperature |
±0.01% FS/10℃ |
|
Sensitivity temperature effect |
±0.01% FS/10℃ |
|
Temperature compensation range |
-10℃ ~ +40 ℃ |
|
Operating temperature range |
-20℃ ~ +60 ℃ |
|
Excitation voltage |
9VDC ~ 12VDC |
|
Safe overload range |
120% |
|
Limit overload range |
150% |
|
Material Science |
Aluminum Alloy |
|
Protection level |
IP65 |
|
External dimension of sensor |
132*46*4 |
|
Mounting hole size |
Φ16 |
