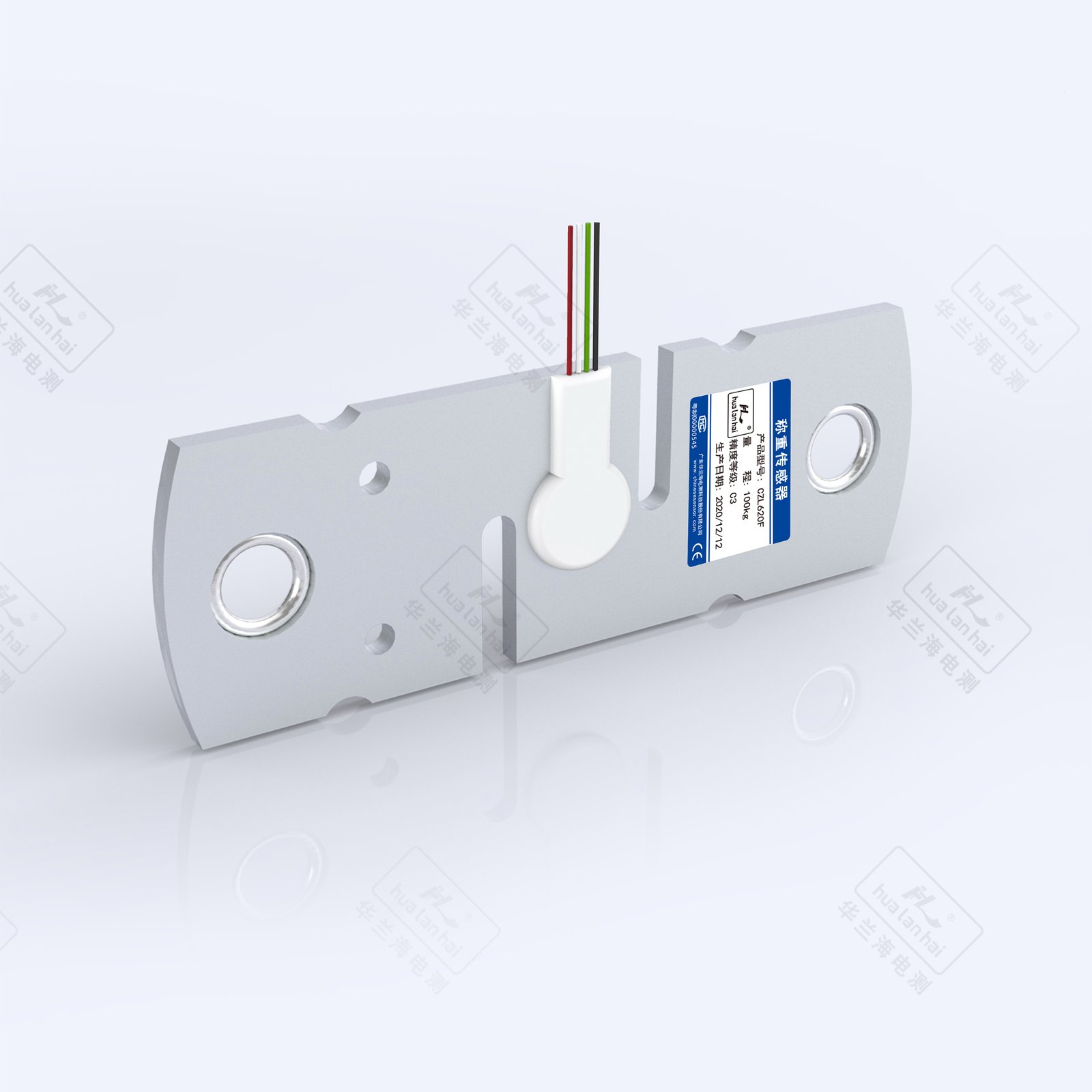

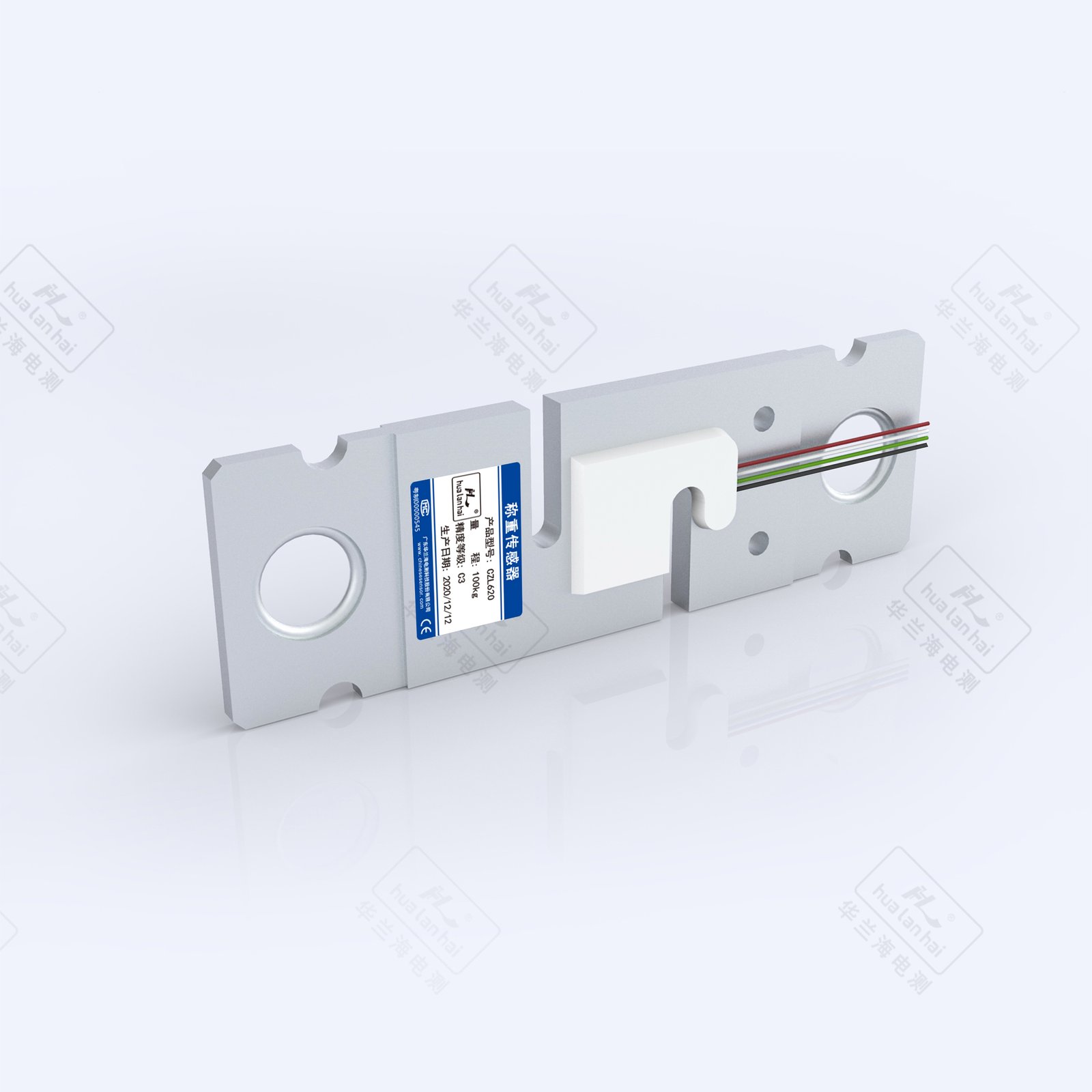

Model: CZL620
Use: Счётные весы, Чайный автомат, Промышленное взвешивание
Structural diagram
parameter
|
Sensor range |
100kg ~ 300kg |
|
Accuracy class |
G1 |
|
Comprehensive error |
±0.1% FS |
|
Output sensitivity |
0.8±0.1 mV/V |
|
creep |
±0.05% FS/10min |
|
Zero output |
±3.0% FS |
|
Input impedance |
1000±10 Ω |
|
Output impedance |
1000±10 Ω |
|
insulation resistance |
≥5000 MΩ(100VDC) |
|
Influence of zero temperature |
±0.08% FS/10℃ |
|
Sensitivity temperature effect |
±0.08% FS/10℃ |
|
Temperature compensation range |
-10℃ ~ +40 ℃ |
|
Operating temperature range |
-20℃ ~ +60 ℃ |
|
Excitation voltage |
5VDC ~ 12VDC |
|
Safe overload range |
120% |
|
Limit overload range |
150% |
|
Material Science |
Aluminum Alloy |
|
Protection level |
IP65 |
|
External dimension of sensor |
146*46*2/4/6 |
|
Mounting hole size |
φ20 |
|
Location of mounting hole |
H116 |
