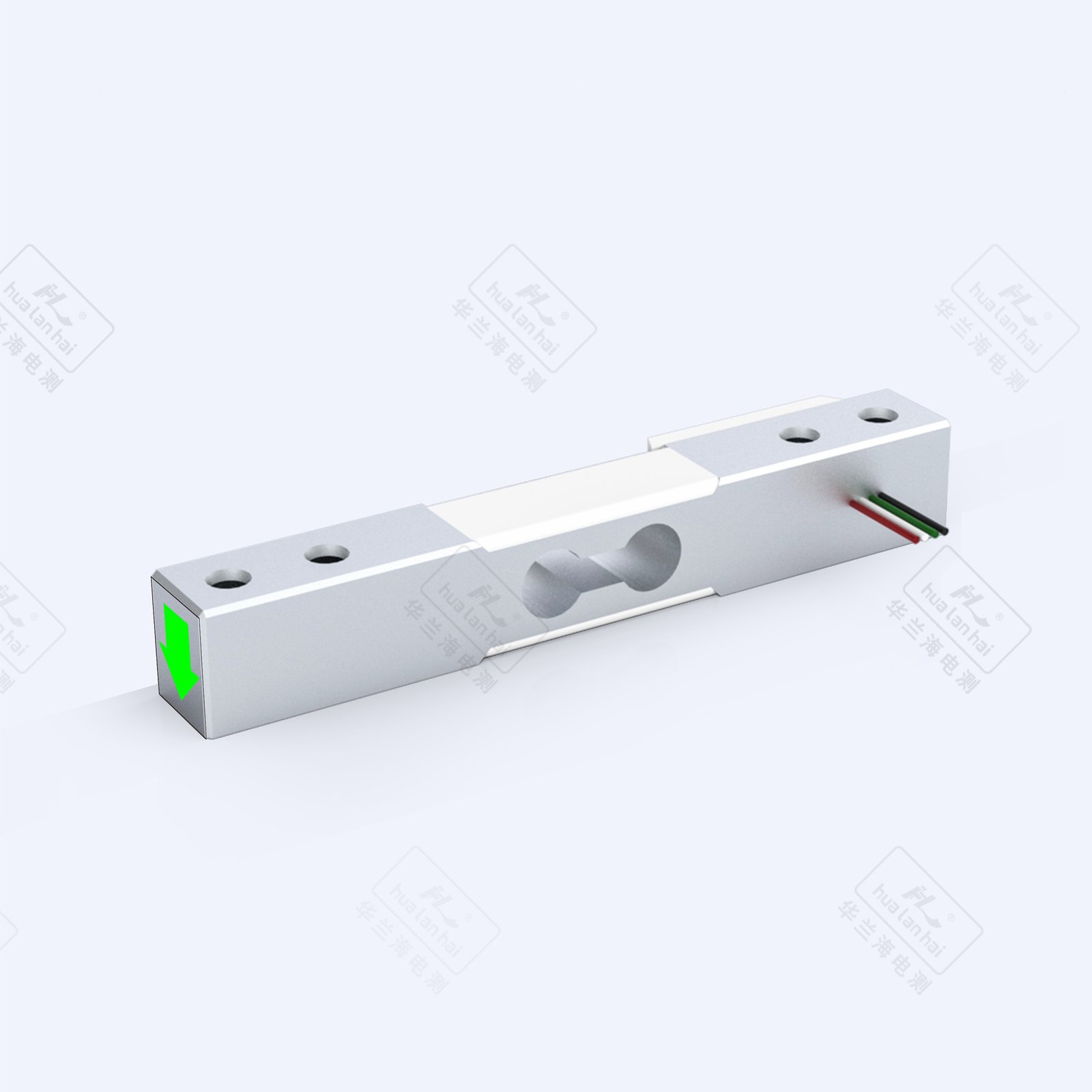

Model: CZL608LD
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
Sensor range | 5kg |
Accuracy class | C2 |
Comprehensive error | ±0.03% FS |
Output sensitivity | 1.0±0.15 mV/V |
creep | ±0.023% FS/30min |
Zero output | ±0.1 mV/V |
Input impedance | 350±10Ω |
Output impedance | 350±3Ω |
insulation resistance | ≥5000 MΩ(100VDC) |
Influence of zero temperature | ±0.029% FS/10℃ |
Sensitivity temperature effect | ±0.025% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -20℃ ~ +60 ℃ |
Excitation voltage | 10VDC ~ 12VDC |
Safe overload range | 120% |
Limit overload range | 150% |
Recommended table size | 150*150mm |
Material Science | Aluminum Alloy |
Protection level | IP65 |
External dimension of sensor | 80*12*10 |
Mounting hole size | 2-M4 |
Location of mounting hole | X9.5 |
