Model: CZL602L
Use: Count the scales, Tea machine, Industrial weighting

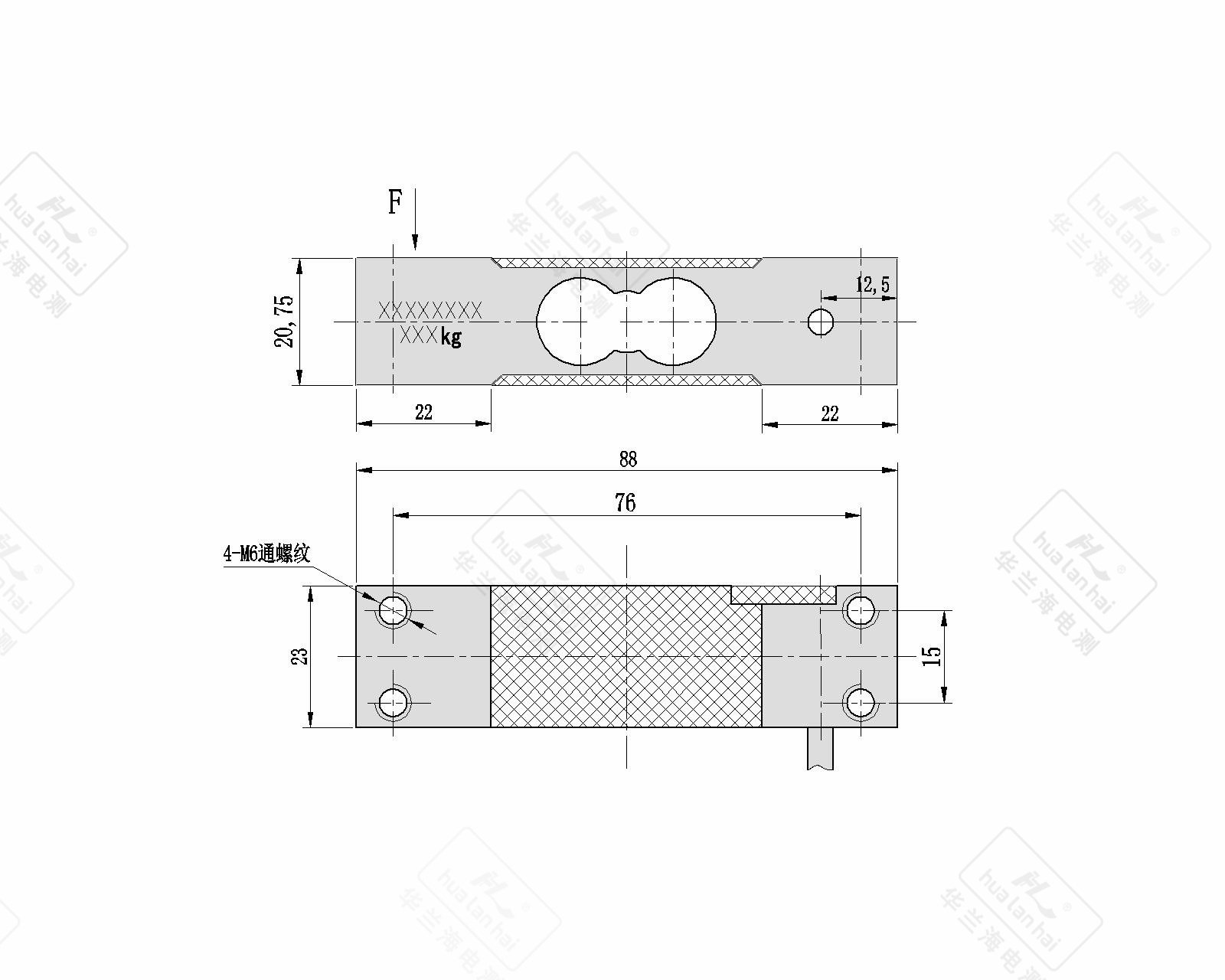

Structural diagram
parameter
| Sensor range | 40kg |
| Accuracy level | C2/C3 |
| Comprehensive error | 0.03% FS |
| Output sensitivity | 2±0.2 mV/V |
| Creep | 0.02% FS/10min |
| Zero point output | ±1.0% FS |
| Input impedance | 405±10Ω |
| Output impedance | 350±3Ω |
| Insulation resistance | ≥5000 MΩ(100VDC) |
| Zero point temperature effect | ±0.03% FS/10℃ |
| Sensitivity temperature effects | ±0.02% FS/10℃ |
| Temperature compensation range | -10℃ ~ +40 ℃ |
| Use temperature range | -20℃ ~ +60 ℃ |
| Excitation voltage | 9VDC ~ 12VDC |
| Safe overload range | 120% |
| Ultimate overload range | 150% |
| Recommended countertop size | 200*200mm |
| material | Aluminum Alloy |
| Protection level | IP65 |
| Sensor form factor | 88*23*20.75 |
| Mounting hole size | 2-M6 |
| Mounting hole hole position | Y15 |
